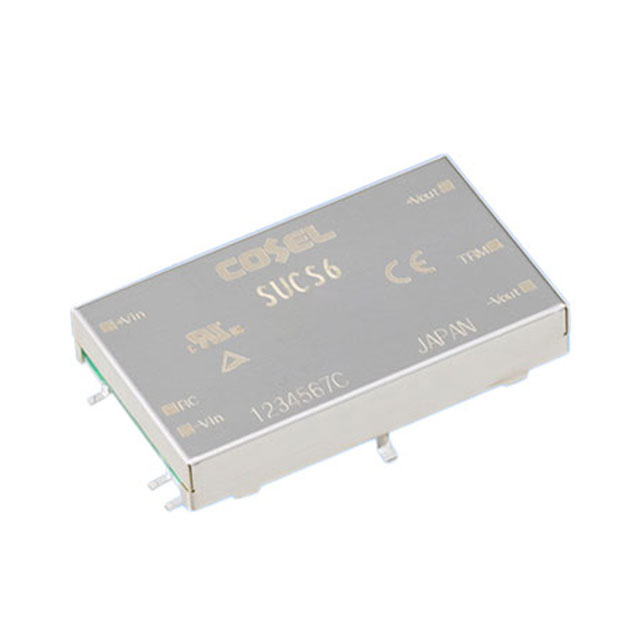

SUCS64812B
ActiveCosel USA, Inc.
DC DC CONVERTER 12V 6W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SUCS64812B
ActiveCosel USA, Inc.
DC DC CONVERTER 12V 6W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SUCS64812B |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 500 mA |
| Efficiency | 86 % |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-SMD Module |
| Power (Watts) | 6 W |
| Size / Dimension [x] | 1.28 in |
| Size / Dimension [x] | 32.6 mm |
| Size / Dimension [y] | 0.73 " |
| Size / Dimension [y] | 18.6 mm |
| Size / Dimension [z] | 0.28 " |
| Size / Dimension [z] | 7 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 76 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 500 V |
| Voltage - Output 1 | 12 V |
SUCS64812 Series
| Part | Current - Output (Max) [Max] | Package / Case | Number of Outputs | Voltage - Input (Min) [Min] | Mounting Type | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Type | Efficiency | Voltage - Input (Max) [Max] | Voltage - Isolation | Voltage - Output 1 | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Cosel USA, Inc. | 500 mA | 6-SMD Module | 1 | 36 V | Surface Mount | 0.73 " | 18.6 mm | 0.28 " | 1.28 in | 7 mm | 32.6 mm | 85 °C | -40 °C | 6 W | Isolated Module | 86 % | 76 V | 500 V | 12 V | ITE (Commercial) |
Cosel USA, Inc. | 500 mA | 6-DIP Module | 1 | 36 V | Through Hole | 0.73 " | 18.6 mm | 0.28 " | 1.28 in | 7 mm | 32.6 mm | 85 °C | -40 °C | 6 W | Isolated Module | 86 % | 76 V | 500 V | 12 V | ITE (Commercial) |
Cosel USA, Inc. | 500 mA | 6-SMD Module | 1 | 36 V | Surface Mount | 0.73 " | 18.6 mm | 0.28 " | 1.28 in | 7 mm | 32.6 mm | 85 °C | -40 °C | 6 W | Isolated Module | 86 % | 76 V | 500 V | 12 V | ITE (Commercial) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 27.33 | |
Description
General part information
SUCS64812 Series
Isolated Module DC DC Converter 1 Output 12V 500mA 36V - 76V Input
