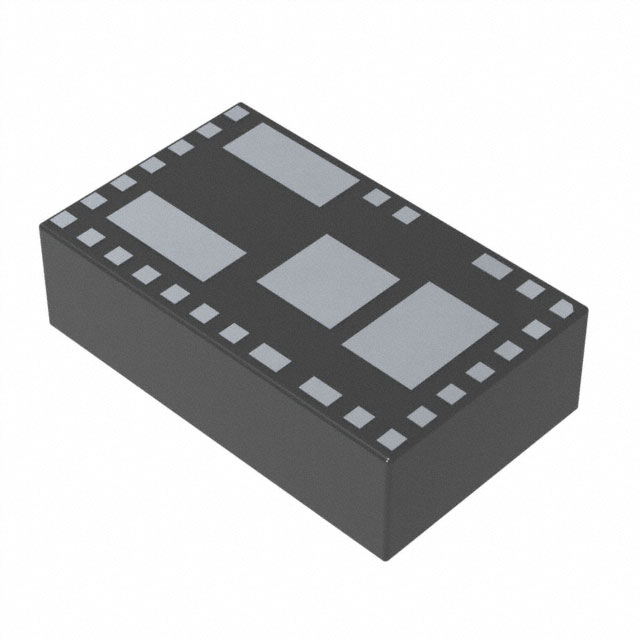

MAXM17546ALY#T
ActiveAnalog Devices Inc./Maxim Integrated
IC REG BUCK ADJ 5A 29SIP
Deep-Dive with AI
Search across all available documentation for this part.
MAXM17546ALY#T
ActiveAnalog Devices Inc./Maxim Integrated
IC REG BUCK ADJ 5A 29SIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXM17546ALY#T | MAXM17546 Series |
|---|---|---|
| Board Type | - | Fully Populated |
| Current - Output | - | 5 A |
| Frequency - Switching | - | 450 kHz |
| Main Purpose | - | DC/DC, Step Down |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Outputs and Type | - | Non-Isolated |
| Outputs and Type | - | 1 |
| Package / Case | 29-PowerBLGA Module | 29-PowerBLGA Module |
| Regulator Topology | - | Buck |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | 29-SIP LGA (9x15) | 29-SIP LGA (9x15) |
| Utilized IC / Part | - | MAXM17546 |
| Voltage - Input | - | 7.5 V |
| Voltage - Input | - | 42 V |
| Voltage - Input (Max) [Max] | 42 V | 42 V |
| Voltage - Input (Min) [Min] | 4.5 V | 4.5 V |
| Voltage - Output | - | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1500 | $ 15.25 | |
MAXM17546 Series
IC REG BUCK ADJ 5A 29SIP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Supplier Device Package | Package / Case | Mounting Type | Board Type | Regulator Topology | Utilized IC / Part | Frequency - Switching | Outputs and Type | Outputs and Type | Supplied Contents | Main Purpose | Voltage - Output | Voltage - Input [Min] | Voltage - Input [Max] | Current - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXM17546ALY# | 125 °C | -40 °C | 42 V | 4.5 V | 29-SIP LGA (9x15) | 29-PowerBLGA Module | Surface Mount | ||||||||||||
Analog Devices Inc./Maxim Integrated MAXM17546EVKITB# | Fully Populated | Buck | MAXM17546 | 450 kHz | Non-Isolated | 1 | Board(s) | DC/DC, Step Down | 5 V | 7.5 V | 42 V | 5 A | |||||||
Analog Devices Inc./Maxim Integrated MAXM17546ALY#T | 125 °C | -40 °C | 42 V | 4.5 V | 29-SIP LGA (9x15) | 29-PowerBLGA Module | Surface Mount |
Description
General part information
MAXM17546 Series
DC DC Converter Output 4.5V - 42V Input
