MAXM17546EVKITB#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR MAXM17546
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAXM17546EVKITB#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT FOR MAXM17546
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAXM17546EVKITB# | MAXM17546 Series |
|---|---|---|
| Board Type | Fully Populated | Fully Populated |
| Current - Output | 5 A | 5 A |
| Frequency - Switching | 450 kHz | 450 kHz |
| Main Purpose | DC/DC, Step Down | DC/DC, Step Down |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Outputs and Type | Non-Isolated | Non-Isolated |
| Outputs and Type | 1 | 1 |
| Package / Case | - | 29-PowerBLGA Module |
| Regulator Topology | Buck | Buck |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 29-SIP LGA (9x15) |
| Utilized IC / Part | MAXM17546 | MAXM17546 |
| Voltage - Input (Max) | - | 42 V |
| Voltage - Input (Min) | - | 4.5 V |
| Voltage - Input [Max] | 42 V | 42 V |
| Voltage - Input [Min] | 7.5 V | 7.5 V |
| Voltage - Output | 5 V | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
MAXM17546 Series
IC REG BUCK ADJ 5A 29SIP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Supplier Device Package | Package / Case | Mounting Type | Board Type | Regulator Topology | Utilized IC / Part | Frequency - Switching | Outputs and Type | Outputs and Type | Supplied Contents | Main Purpose | Voltage - Output | Voltage - Input [Min] | Voltage - Input [Max] | Current - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXM17546ALY# | 125 °C | -40 °C | 42 V | 4.5 V | 29-SIP LGA (9x15) | 29-PowerBLGA Module | Surface Mount | ||||||||||||
Analog Devices Inc./Maxim Integrated MAXM17546EVKITB# | Fully Populated | Buck | MAXM17546 | 450 kHz | Non-Isolated | 1 | Board(s) | DC/DC, Step Down | 5 V | 7.5 V | 42 V | 5 A | |||||||
Analog Devices Inc./Maxim Integrated MAXM17546ALY#T | 125 °C | -40 °C | 42 V | 4.5 V | 29-SIP LGA (9x15) | 29-PowerBLGA Module | Surface Mount |
Description
General part information
MAXM17546 Series

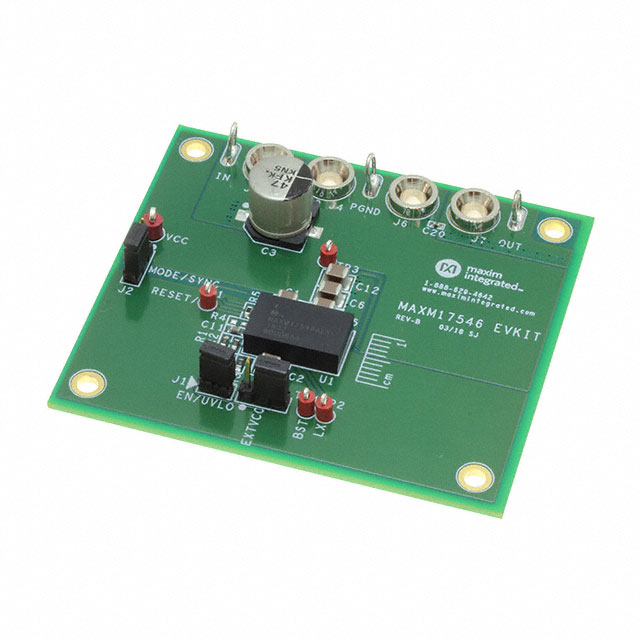

MAXM17546 Himalaya DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
