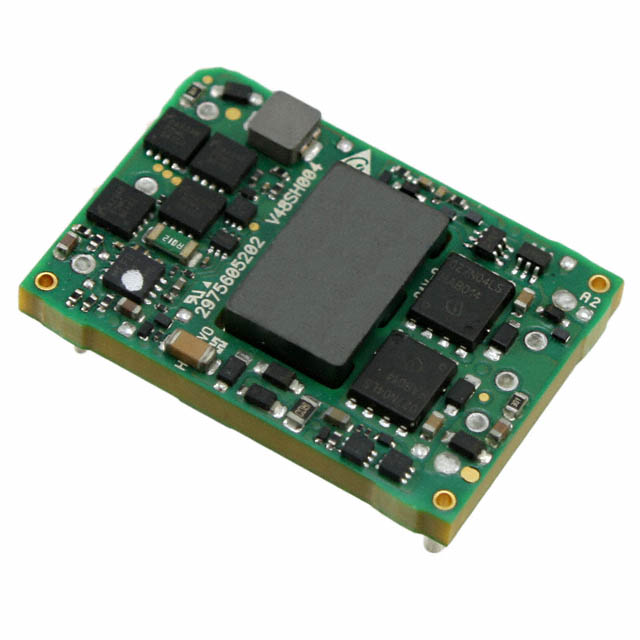

V48SH3R325NNFA

Obsolete

Delta Electronics

DC DC CONVERTER 3.3V 100W

Search across all available documentation for this part.

Obsolete

Delta Electronics

DC DC CONVERTER 3.3V 100W

Technical Specifications

Parameters and characteristics for this part

DC DC CONVERTER 3.3V 100W

Part	Voltage - Input (Min) [Min]	Type	Package / Case	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Features	Number of Outputs	Voltage - Isolation	Voltage - Output 1	Control Features	Voltage - Input (Max) [Max]	Mounting Type	Efficiency	Applications	Current - Output (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]
Delta Electronics V48SH3R325NNFA	36 V	Isolated Module	8-DIP Module, 1/16 Brick	100 W	22.8 mm	9.5 mm	33 mm	0.9 "	0.37 in	1.3 "	OCP, OTP, OVP, Remote On/Off, UVLO	1	1.5 kV	3.3 V	Active Low, Enable	75 V	Through Hole	91 %	ITE (Commercial)	25 A	118 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Isolated Module DC DC Converter 1 Output 3.3V 25A 36V - 75V Input
