T4012008031-000
ActiveTE Connectivity AMP Connectors

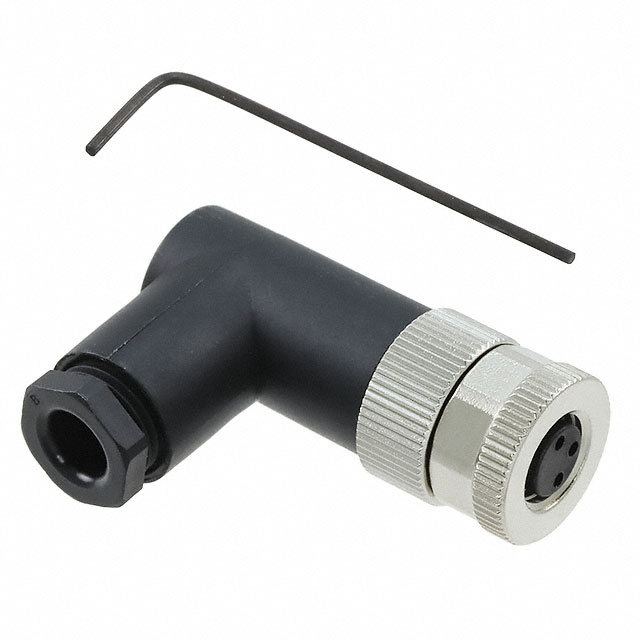

CONN RCPT FMALE 3POS GOLD SCREW
Deep-Dive with AI
Search across all available documentation for this part.
T4012008031-000
ActiveTE Connectivity AMP Connectors
CONN RCPT FMALE 3POS GOLD SCREW
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T4012008031-000 | T40120 Series |
|---|---|---|
| Applications | Telecommunications, Automation Control, Industrial | Telecommunications, Automation Control, Industrial |
| Backshell Material, Plating | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Cable Opening [Max] | 4.8 mm | 4.8 mm |
| Cable Opening [Max] [diameter] | 0.189 in | 0.189 in |
| Cable Opening [Min] | 3.5 mm | 3.5 mm |
| Cable Opening [Min] [diameter] | 0.138 in | 0.138 in |
| Color | Silver | Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 3 µin | 3 µin |
| Contact Finish Thickness - Mating | 0.076 µm | 0.076 µm |
| Current Rating (Amps) | 3 A | 3 A |
| Features | Coupling Nut, Backshell | Coupling Nut, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Number of Positions | - | 4 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | A | A |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Nickel |
| Shell Material | Brass | Brass |
| Shell Size - Insert | M8-3 | M8-4, M8-3 |
| Shielding | Unshielded | Unshielded |
| Termination | Screw | Screw |
| Voltage Rating | 60 VDC | 30 - 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 10.81 | |
| 10 | $ 9.77 | |||
| 25 | $ 9.52 | |||
| 50 | $ 9.15 | |||
| 100 | $ 8.48 | |||
| 250 | $ 8.43 | |||
| 500 | $ 8.12 | |||
| 1000 | $ 7.24 | |||
T40120 Series
CONN RCPT FMALE 4POS GOLD SCREW
| Part | Shell Material | Features | Operating Temperature [Max] | Operating Temperature [Min] | Color | Primary Material | Shell Size - Insert | Connector Type | Orientation | Termination | Shell Finish | Contact Finish - Mating | Ingress Protection | Current Rating (Amps) | Applications | Voltage Rating | Number of Positions | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insert Material | Shielding | Backshell Material, Plating | Cable Opening [Min] | Cable Opening [Max] [diameter] | Cable Opening [Min] [diameter] | Cable Opening [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T4012008041-000 | Brass | Backshell, Coupling Nut | 85 °C | -40 °C | Silver | Metal | M8-4 | Receptacle, Female Sockets | A | Screw | Nickel | Gold | IP67 - Dust Tight, Waterproof | 3 A | Automation Control, Industrial, Telecommunications | 30 VDC | 4 | Free Hanging (In-Line), Right Angle | 3 µin | 0.076 µm | |||||||
TE Connectivity AMP Connectors T4012008031-000 | Brass | Backshell, Coupling Nut | 85 °C | -40 °C | Silver | Metal | M8-3 | Receptacle, Female Sockets | A | Screw | Nickel | Gold | IP67 - Dust Tight, Waterproof | 3 A | Automation Control, Industrial, Telecommunications | 60 VDC | Free Hanging (In-Line), Right Angle | 3 µin | 0.076 µm | Nylon, Polyamide (PA) | Unshielded | Polybutylene Terephthalate (PBT) | 3.5 mm | 0.189 in | 0.138 in | 4.8 mm |
Description
General part information
T40120 Series
3 Position Circular Connector Receptacle, Female Sockets Screw
