7988P N3UU1000

Active

Belden Inc.

4 PR #24 FEP PVC

Search across all available documentation for this part.

Active

Belden Inc.

4 PR #24 FEP PVC

Technical Specifications

Parameters and characteristics for this part

Specification	7988P N3UU1000

Cable Type	Multi-Pair, Cat5e
Conductor Insulation	Fluorinated Ethylene-Propylene (FEP)
Conductor Material	Copper, Bare
Conductor Strand	Solid
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	4.9 mm
Jacket (Insulation) Diameter [diameter]	0.193 in
Jacket (Insulation) Material	Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum
Jacket Color	Green
Length	1000 ft
Length	304.8 m
Number of Conductors	8
Ratings	UL Style CMP
Usage	Video
Voltage	300 V
Wire Gauge	24 AWG

Part	Ratings	Jacket (Insulation) Material	Number of Conductors	Voltage	Features	Cable Type	Wire Gauge	Conductor Material	Conductor Strand	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Length	Length	Usage
Belden Inc. 7988P N3UU1000	UL Style CMP	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	8	300 V	Rip Cord	Multi-Pair Cat5e	24 AWG	Copper Bare	Solid	Green	4.9 mm	0.193 in	Fluorinated Ethylene-Propylene (FEP)	1000 ft	304.8 m	Video

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

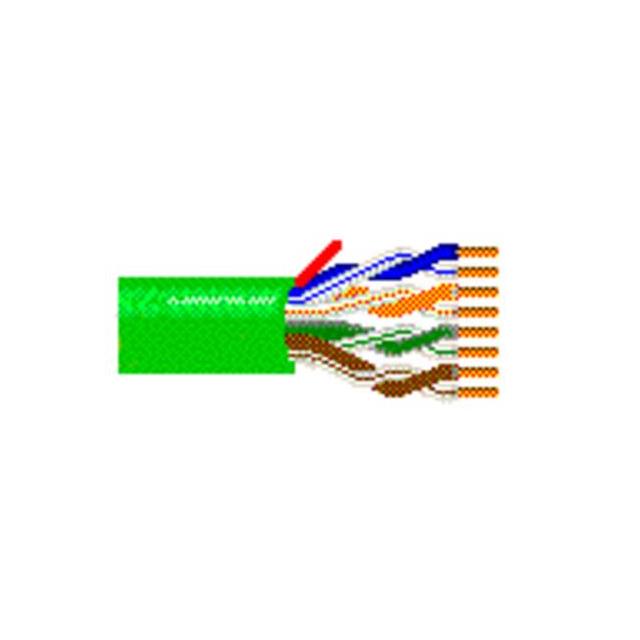

8 (4 Pair) Conductor Multi-Pair, Cat5e Cable Green 24 AWG 1000.0' (304.8m)

Technical documentation and resources
