86492-9
ActiveTE Connectivity AMP Connectors

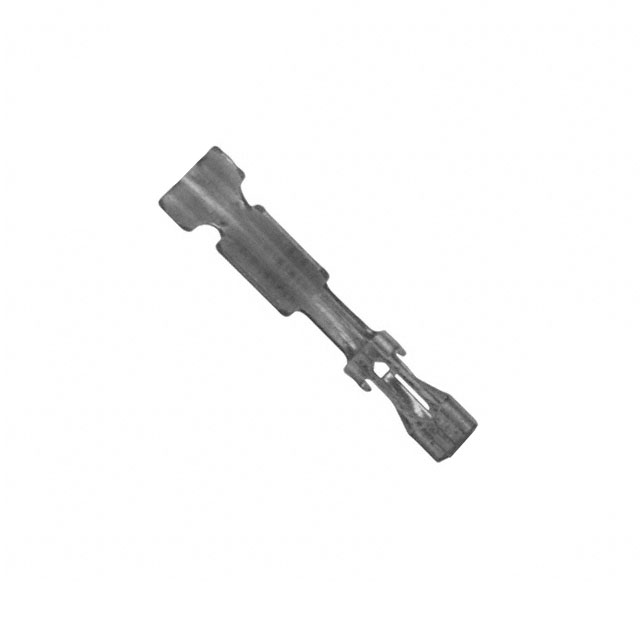

CONN SOCKET 20-24AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
86492-9
ActiveTE Connectivity AMP Connectors
CONN SOCKET 20-24AWG CRIMP TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 86492-9 | 86492 Series |
|---|---|---|
| Contact Finish | Tin | Tin, Gold |
| Contact Finish Thickness | 78 µin | 15 - 78 µin |
| Contact Finish Thickness | 1.98 µm | 0.38 - 1.98 µm |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Wire Gauge [Max] | 24 AWG | 24 AWG |
| Wire Gauge [Min] | 20 AWG | 20 AWG |
86492 Series
CONN SOCKET 20-24AWG CRIMP TIN
| Part | Contact Finish | Pin or Socket | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish Thickness | Contact Finish Thickness | Contact Termination |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 86492-9 | Tin | Socket | 20 AWG | 24 AWG | 78 µin | 1.98 µm | Crimp |
TE Connectivity AMP Connectors 86492-2 | Gold | Socket | 20 AWG | 24 AWG | 15 µin | 0.38 µm | Crimp |
TE Connectivity AMP Connectors 86492-6 | Gold | Socket | 20 AWG | 24 AWG | 30 Áin | 0.76 Ám | Crimp |
TE Connectivity AMP Connectors 86492-4 | Gold | Socket | 20 AWG | 24 AWG | 30 Áin | 0.76 Ám | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.33 | |
| 10 | $ 0.31 | |||
| 25 | $ 0.31 | |||
| 50 | $ 0.30 | |||
| 100 | $ 0.26 | |||
| 250 | $ 0.23 | |||
| 500 | $ 0.23 | |||
| Tape & Reel (TR) | 12500 | $ 0.22 | ||
Description
General part information
86492 Series
Socket Contact Tin 20-24 AWG Crimp
Documents
Technical documentation and resources
