Connectors, Interconnects
86492-9
ActiveTE Connectivity Raychem Cable Protection

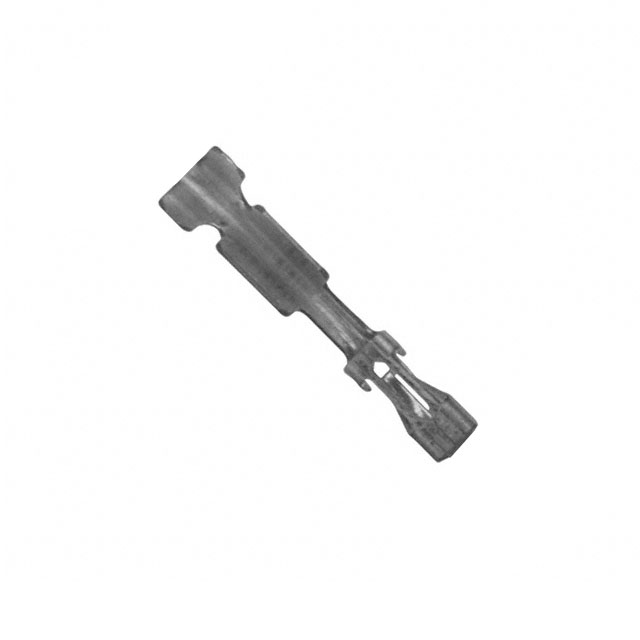

CONN SOCKET 20-24AWG CRIMP TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 86492-9 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 78 µin |
| Contact Finish Thickness | 1.98 µm |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.33 | |
| 10 | $ 0.31 | |||
| 25 | $ 0.31 | |||
| 50 | $ 0.30 | |||
| 100 | $ 0.26 | |||
| 250 | $ 0.23 | |||
| 500 | $ 0.23 | |||
| Tape & Reel (TR) | 12500 | $ 0.22 | ||
Description
General part information
86492 Series
Socket Contact Tin 20-24 AWG Crimp
