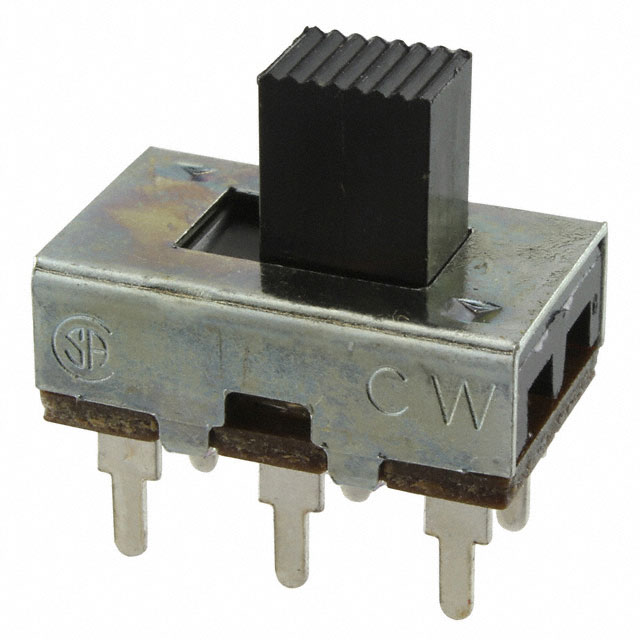

GF-426-0020
ObsoleteCW Industries
SWITCH SLIDE DPDT 4A 125V
GF-426-0020
ObsoleteCW Industries
SWITCH SLIDE DPDT 4A 125V
Description
General part information
GF-426 Series
Slide Switch DPDT Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | GF-426-0020 |
|---|---|
| Actuator Length | 8.74 mm |
| Actuator Material | Nylon 6/6, Polyamide (PA66) |
| Actuator Type | Standard |
| Circuit | DPDT |
| Contact Finish | Silver |
| Contact Material | Copper |
| Current Rating | 4 A |
| Electrical Life (Cycles) | 6000 Cycles |
| Mechanical Life (Cycles) | 10000 Cycles |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 104 °C |
| Operating Temperature (Min) | -10 °C |
| Switch Function | On-On |
| Switch Travel | 3.89 mm |
| Termination Style | PC Pin |
| Voltage Rating - AC | 125 V |
