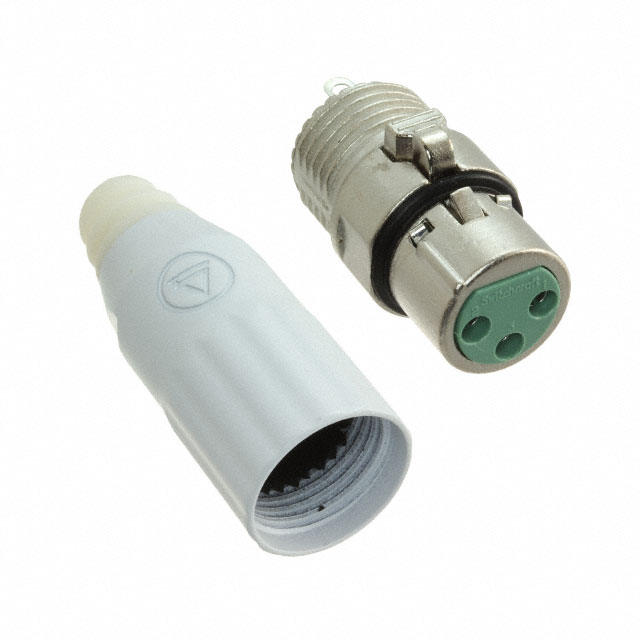

AAA3FWZ

Active

Switchcraft Inc.

CONN PLUG FMALE XLR 3POS SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PLUG FMALE XLR 3POS SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	AAA3FWZ

Applications	Audio, Industrial, Instrumentation, Medical
Backshell Material, Plating	Nickel, Zinc Alloy
Cable Opening [diameter]	2.54 mm, 5.59 mm
Cable Opening [diameter]	0.1 in, 0.22 in
Color	White
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	15 A
Fastening Type	Latch Lock
Features	Backshell, Strain Relief, Ground, Cable Clamp
Insert Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	XLR
Shielding	Shielded
Voltage Rating	125 VAC

CONN PLUG FMALE XLR 3POS SOLDER

Part	Color	Mounting Type	Voltage Rating	Backshell Material, Plating	Shell Finish	Primary Material	Features	Current Rating (Amps)	Connector Type	Shielding	Applications	Insert Material	Fastening Type	Shell Material	Orientation	Contact Finish - Mating	Shell Size - Insert	Contact Material	Cable Opening [diameter]	Cable Opening [diameter]
Switchcraft Inc. AAA3FWZ	White	Free Hanging (In-Line)	125 VAC	Nickel, Zinc Alloy	Nickel	Metal	Backshell, Cable Clamp, Ground, Strain Relief	15 A	Female Sockets, Plug	Shielded	Audio, Industrial, Instrumentation, Medical	Thermoplastic	Latch Lock	Zinc Alloy	Keyed	Silver	XLR	Copper Alloy	2.54 mm, 5.59 mm	0.1 in, 0.22 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Position Circular Connector Plug, Female Sockets Solder Cup
