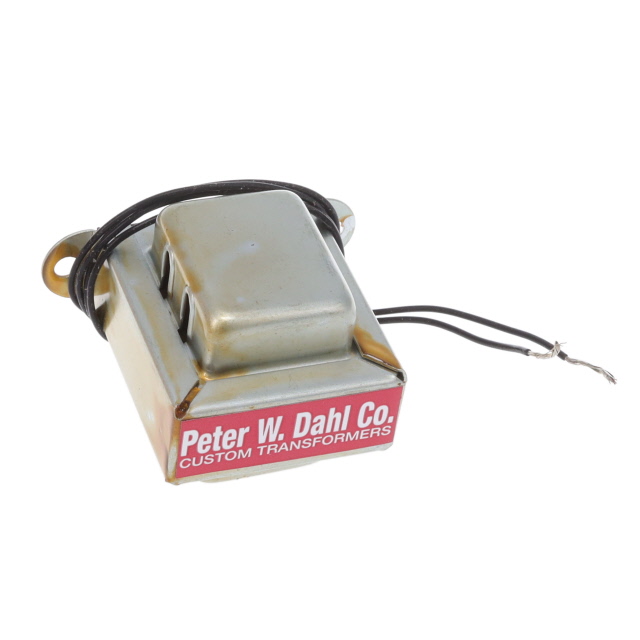

PWDI13158
ActiveHammond Manufacturing
PWR XFMR CHAS MT
Deep-Dive with AI
Search across all available documentation for this part.
PWDI13158
ActiveHammond Manufacturing
PWR XFMR CHAS MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PWDI13158 |
|---|---|
| Current - Output (Max) [Max] | 80 mA |
| Height - Seated (Max) [Max] [z] | 1.995 " |
| Height - Seated (Max) [Max] [z] | 50.67 mm |
| Mounting Type | Chassis Mount |
| Primary Winding(s) | Single |
| Size / Dimension [x] | 60.33 mm |
| Size / Dimension [y] | 1.6 " |
| Termination Style | Wire Leads |
| Voltage - Primary | 600 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 23.18 | |
Description
General part information
PWDI13 Series
PWR XFMR CHAS MT
Documents
Technical documentation and resources
No documents available
