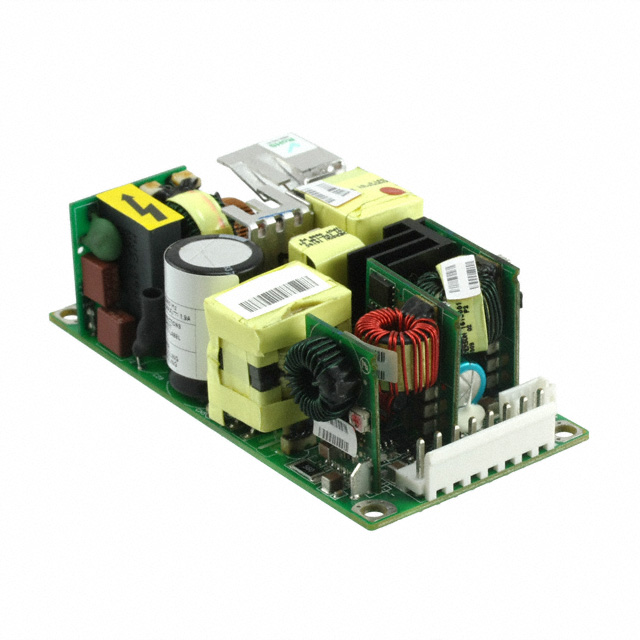

Specification	LPT101-M

Applications	ITE (Commercial), Medical
Approval Agency	CB, CE
Current - Output 1	18 A
Current - Output 2	9 A
Current - Output 3	2.3 A
Efficiency	82 %
Features	Remote Sense, PFC, Adjustable Output, DC Input Capable, Universal Input
Minimum Load Required	No
Mounting Type	Chassis Mount
Number of Outputs	3
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	0 °C
Power (Watts)	130 W, 80 W
Size / Dimension Height	1.28 in
Size / Dimension Length	4 in
Size / Dimension Width	2 in
Type	Open Frame
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	90 V
Voltage - Output 1	3.3 V
Voltage - Output 2	5 V
Voltage - Output 3	12 V

LPT101 Series

Part	Applications	Power (Watts)	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Current - Output 3	Type	Voltage - Output 3	Mounting Type	Voltage - Output 2	Number of Outputs	Approval Agency	Voltage - Output 1	Current - Output 2	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Operating Temperature (Max)	Operating Temperature (Min)	Current - Output 1	Features	Efficiency	Minimum Load Required
ARTESYN / Advanced Energy LPT101-M	ITE (Commercial) Medical	80 W 130 W	90 V	264 V	2.3 A	Open Frame	12 V	Chassis Mount	5 V	3	CB CE	3.3 V	9 A	1.28 in	4 in	2 in	70 °C	0 °C	18 A	Adjustable Output DC Input Capable PFC Remote Sense Universal Input	82 %	No

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
