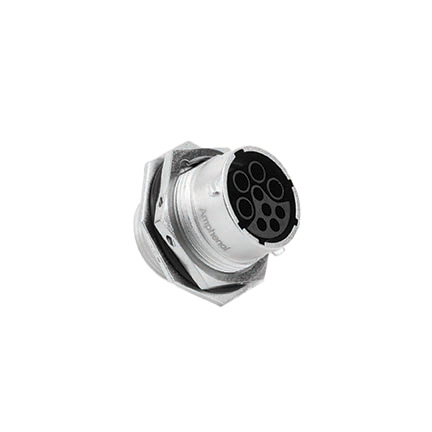

RT071609SNH

Active

Amphenol Sine Systems Corp

RECEPTACLE, JAM NUT, 9 (4+5) POS

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

RECEPTACLE, JAM NUT, 9 (4+5) POS

Technical Specifications

Parameters and characteristics for this part

Specification	RT071609SNH

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	2.5 mm, 16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Cap (Cover)
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Note	Contacts Not Included
Number of Positions	9
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shielding	Shielded
Type	For Female Sockets

Part	Type	Ingress Protection	Connector Type	Shell Material	Orientation	Number of Positions	Shielding	Primary Material	Housing Color	Note	Fastening Type	Contact Type	Contact Shape	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Contact Size	Features	Insert Material	Material Flammability Rating	Mounting Feature
Amphenol Sine Systems Corp RT071609SNH	For Female Sockets	IP67 - Dust Tight Waterproof	Receptacle Housing	Zinc Alloy	N	9	Shielded	Metal	Silver	Contacts Not Included	Bayonet Lock	Crimp	Circular	Nickel	-40 °C	105 ░C	2.5 mm 16	Cap (Cover)	Thermoplastic	UL94 V-0	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Circular Connector Receptacle Housing Panel Mount Cap (Cover)
