17880-4PG-300

Active

Conxall/Switchcraft

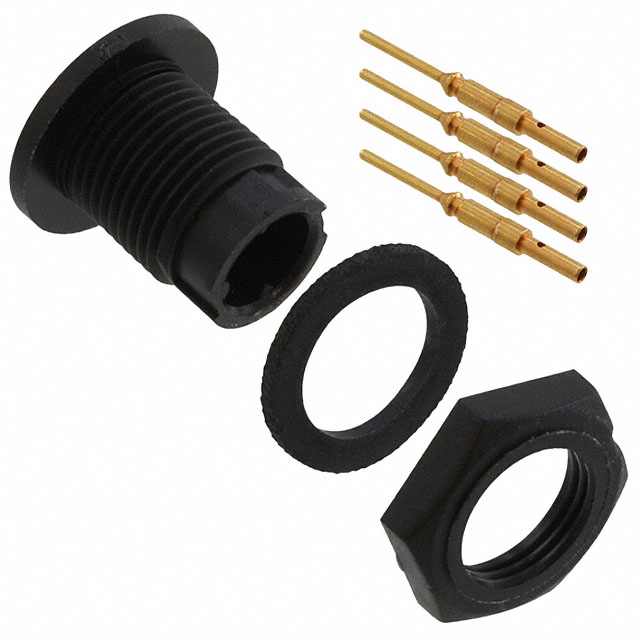

CONN RCPT MALE 4POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 4POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	17880-4PG-300

Applications	Medical, Data, Instrumentation, Industrial
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	6 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB
Mounting Feature	Bulkhead - Front Side Nut
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 VAC

CONN RCPT MALE 4POS GOLD CRIMP

Part	Shielding	Material Flammability Rating	Mounting Feature	Number of Positions	Current Rating (Amps)	Orientation	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Contact Material	Voltage Rating	Primary Material	Termination	Contact Finish - Mating	Fastening Type	Connector Type	Color
Conxall/Switchcraft 17880-4PG-300	Unshielded	UL94 HB	Bulkhead - Front Side Nut	4	6 A	Keyed	Data, Industrial, Instrumentation, Medical	85 °C	-40 °C	IP67 - Dust Tight, Waterproof	Copper Alloy	600 VAC	Plastic	Crimp	Gold	Bayonet Lock	Male Pins, Receptacle	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Male Pins Crimp
