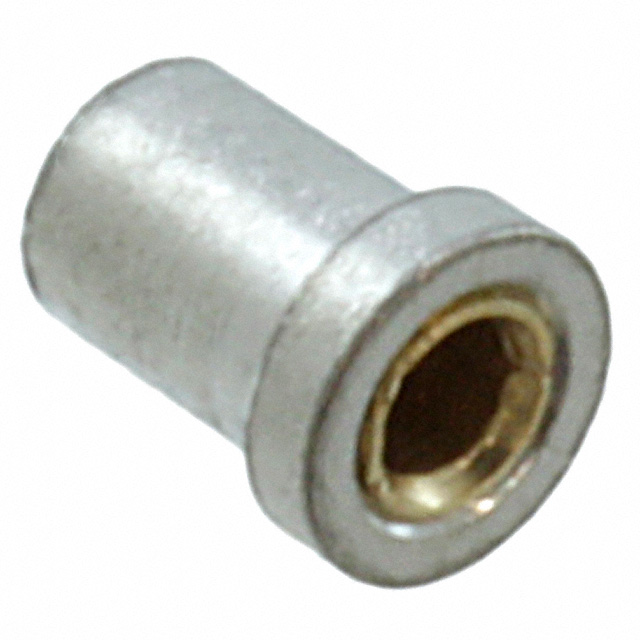

0337-0-67-80-15-27-10-0 - 0337-0-67-80-15-27-10-0

0337-0-67-80-15-27-10-0

Active
Mill-Max Manufacturing Corp.

CONN PIN RCPT .020-.032 SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

0337-0-67-80-15-27-10-0 - 0337-0-67-80-15-27-10-0

0337-0-67-80-15-27-10-0

Active
Mill-Max Manufacturing Corp.

CONN PIN RCPT .020-.032 SOLDER

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

Specification0337-0-67-80-15-27-10-0
Accepts Pin Diameter [Max] [diameter]0.81 mm
Accepts Pin Diameter [Max] [diameter]0.032 in
Accepts Pin Diameter [Min] [diameter]0.02 "
Accepts Pin Diameter [Min] [diameter]0.51 mm
Contact FinishGold
Contact Finish Thickness0.76 Ám
Contact Finish Thickness30 Áin
Contact MaterialBeryllium Copper
FeaturesKnockout Bottom (Organic Fiber Plug®)
Flange Diameter [diameter]0.078 in
Flange Diameter [diameter]1.98 mm
Length - Overall [x]0.1 "
Length - Overall [x]2.54 mm
Mounting Hole Diameter [diameter]0.066 in
Mounting Hole Diameter [diameter]1.68 mm
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Pin Hole Diameter [diameter]1.63 mm
Pin Hole Diameter [diameter]0.064 in
Socket Depth2.54 mm
Socket Depth0.1 "
Tail TypeNo Tail
TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.31
10$ 1.00
25$ 0.90
50$ 0.83
100$ 0.77
250$ 0.69
500$ 0.64
1000$ 0.60
2500$ 0.54
Digi-Reel® 1$ 1.31
10$ 1.00
25$ 0.90
50$ 0.83
100$ 0.77
250$ 0.69
500$ 0.64
1000$ 0.60
2500$ 0.54
Tape & Reel (TR) 6000$ 0.52
12000$ 0.48

Description

General part information

0337-0 Series

Pin Receptacle Connector 0.020" ~ 0.032" (0.51mm ~ 0.81mm) No Tail Solder

Documents

Technical documentation and resources

No documents available
