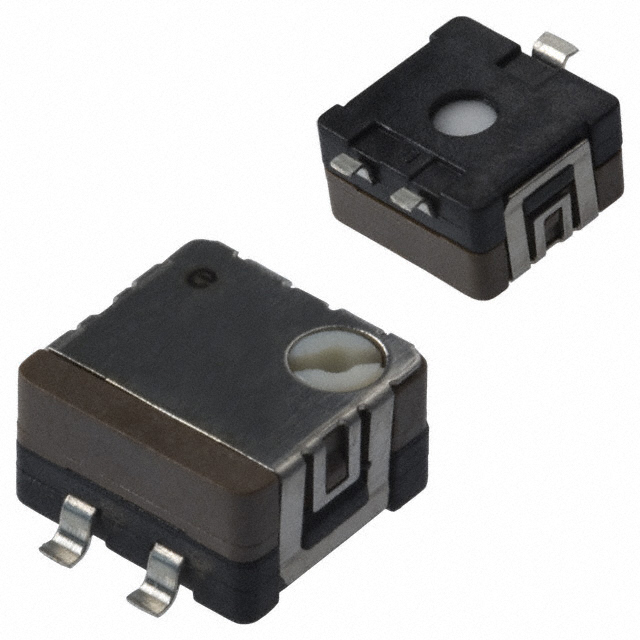

ST-7ETB105

Active

Nidec Components Corporation

TRIMMER 1M OHM 0.25W GW TOP ADJ

Search across all available documentation for this part.

Active

Nidec Components Corporation

TRIMMER 1M OHM 0.25W GW TOP ADJ

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Termination Style	Resistive Material	Number of Turns	Adjustment Type	Power (Watts)	Power (Watts)	Resistance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Temperature Coefficient	Tolerance
Nidec Components Corporation ST-7ETB104	Surface Mount	Gull Wing	Cermet	3	Top Adjustment	0.25 W	250 mW	100 kOhms	0.252 in	6.1 mm	6.4 mm	0.24 "	100 ppm/°C	20 %
Nidec Components Corporation ST-7ETB103	Surface Mount	Gull Wing	Cermet	3	Top Adjustment	0.25 W	250 mW	10000 Ohms	0.252 in	6.1 mm	6.4 mm	0.24 "	100 ppm/°C	20 %
Nidec Components Corporation ST-7ETB504	Surface Mount	Gull Wing	Cermet	3	Top Adjustment	0.25 W	250 mW		0.252 in	6.1 mm	6.4 mm	0.24 "	100 ppm/°C	20 %
Nidec Components Corporation ST-7ETB201	Surface Mount	Gull Wing	Cermet	3	Top Adjustment	0.25 W	250 mW	200 Ohms	0.252 in	6.1 mm	6.4 mm	0.24 "	100 ppm/°C	20 %
Nidec Components Corporation ST-7ETB203	Surface Mount	Gull Wing	Cermet	3	Top Adjustment	0.25 W	250 mW	20 kOhms	0.252 in	6.1 mm	6.4 mm	0.24 "	100 ppm/°C	20 %
Nidec Components Corporation ST-7ETB102	Surface Mount	Gull Wing	Cermet	3	Top Adjustment	0.25 W	250 mW	1000 Ohms	0.252 in	6.1 mm	6.4 mm	0.24 "	100 ppm/°C	20 %
Nidec Components Corporation ST-7ETB503	Surface Mount	Gull Wing	Cermet	3	Top Adjustment	0.25 W	250 mW	50 kOhms	0.252 in	6.1 mm	6.4 mm	0.24 "	100 ppm/°C	20 %
Nidec Components Corporation ST-7ETB105	Surface Mount	Gull Wing	Cermet	3	Top Adjustment	0.25 W	250 mW	1 MOhms	0.252 in	6.1 mm	6.4 mm	0.24 "	100 ppm/°C	20 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 4.37

General part information

1 MOhms 0.25W, 1/4W Gull Wing Surface Mount Trimmer Potentiometer Cermet 3.0 Turn Top Adjustment

Technical documentation and resources
