N3433-6003RB

Active

70010000308 N3433-6003RB=50/HDR/STR/HT/.155/30AVG/ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

N3433-6003RB

Active

70010000308 N3433-6003RB=50/HDR/STR/HT/.155/30AVG/ROHS

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.07
		10	$ 6.96
		150	$ 5.19
		600	$ 4.51
		1050	$ 4.27
Newark	Each	250	$ 6.39
		500	$ 5.93
		1000	$ 5.58

Description

General part information

N3433 Series

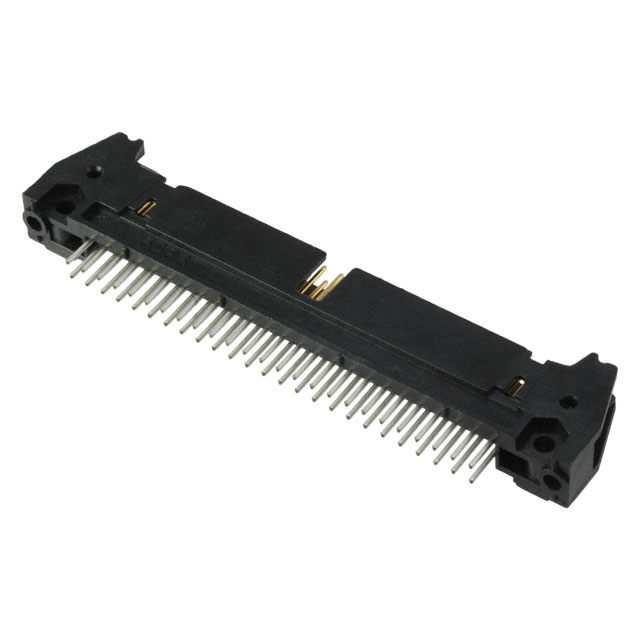

Connector Header Through Hole 50 position 0.100" (2.54mm)

Documents

Technical documentation and resources

Datasheet

Interconnect Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N3433-6003RB	N3433 Series

Connector Type	Header	Header, Stackable (2)
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 - 300 µin
Contact Finish Thickness - Post	5.08 µm	5.08 - 7.62 µm
Contact Length - Mating	6.1 mm	6.1 mm
Contact Length - Mating [x]	0.24 in	0.24 in
Contact Length - Post	3.94 mm	2.84 - 15.49 mm
Contact Length - Post	0.155 "	0.112 - 0.61 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.75 A	1.75 A
Fastening Type	Push-Pull	Push-Pull, Latch Lock/Eject Hooks, Short, Latch Lock/Eject Hooks, Long
Insulation Color	Black	Black
Insulation Height	17.27 mm	7.87 - 17.4 mm
Insulation Height	0.68 in	0.31 - 0.685 in
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle
Number of Positions	50	50
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	0.695 in	0.652 - 1.15 in
Overall Contact Length	17.65 mm	16.56 - 29.21 mm
Overall Contact Length	-	0.715 "
Overall Contact Length	-	18.16 mm
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall, Shrouded - 3 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Wire Wrap, Solder, Press-Fit

N3433 Series

CONN HEADER VERT 50POS 2.54MM

Part	Connector Type	Contact Length - Mating	Contact Length - Mating [x]	Number of Positions Loaded	Mounting Type	Insulation Material	Contact Type	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Material	Insulation Height	Insulation Height	Contact Shape	Number of Rows	Termination	Contact Length - Post	Contact Length - Post	Shrouding	Fastening Type	Style	Number of Positions	Insulation Color	Overall Contact Length	Overall Contact Length	Contact Finish - Mating	Overall Contact Length [x]	Overall Contact Length [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post
3M N3433-6005EB	Header	6.1 mm	0.24 in	All	Through Hole	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	0.1 in	2.54 mm	UL94 V-0	30 Áin	0.76 Ám	2.54 mm	0.1 in	105 ░C	-55 °C	1.75 A	Copper Alloy	17.27 mm	0.68 in	Square	2	Wire Wrap	0.61 in	15.49 mm	Shrouded - 4 Wall	Push-Pull	Board to Board, Cable	50	Black	1.15 in	29.21 mm	Gold
3M N3433-600T02RB	Header	6.1 mm	0.24 in	All	Through Hole	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Male Pin	0.1 in	2.54 mm	UL94 V-0	30 Áin	0.76 Ám	2.54 mm	0.1 in	105 ░C	-55 °C	1.75 A	Copper Alloy	17.27 mm	0.68 in	Square	2	Press-Fit, Solder	0.175 in	4.45 mm	Shrouded - 4 Wall	Push-Pull	Board to Board, Cable	50	Black			Gold	0.715 "	18.16 mm	300 µin	7.62 µm	Tin
3M N3433-620T02RB	Header	6.1 mm	0.24 in	All	Through Hole	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	0.1 in	2.54 mm	UL94 V-0	30 Áin	0.76 Ám	2.54 mm	0.1 in	105 ░C	-55 °C	1.75 A	Copper Alloy	17.27 mm	0.68 in	Square	2	Press-Fit, Solder	0.175 in	4.45 mm	Shrouded - 4 Wall	Latch Lock/Eject Hooks, Short	Board to Board, Cable	50	Black			Gold	0.715 "	18.16 mm	300 µin	7.62 µm	Tin
3M N3433-2003RB	Header	6.1 mm	0.24 in	All	Through Hole	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	0.1 in	2.54 mm	UL94 V-0	30 Áin	0.76 Ám	2.54 mm	0.1 in	105 ░C	-55 °C	1.75 A	Copper Alloy	17.4 mm	0.685 "	Square	2	Solder	0.155 "	3.94 mm	Shrouded - 3 Wall	Push-Pull	Board to Board, Cable	50	Black	0.695 in	17.65 mm	Gold			200 µin	5.08 µm	Tin
3M N3433-6305EB	Header	6.1 mm	0.24 in	All	Through Hole	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	0.1 in	2.54 mm	UL94 V-0	30 Áin	0.76 Ám	2.54 mm	0.1 in	105 ░C	-55 °C	1.75 A	Copper Alloy	17.27 mm	0.68 in	Square	2	Wire Wrap	0.61 in	15.49 mm	Shrouded - 4 Wall	Latch Lock/Eject Hooks, Long	Board to Board, Cable	50	Black	1.15 in	29.21 mm	Gold
3M N3433-6003RB	Header	6.1 mm	0.24 in	All	Through Hole	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	0.1 in	2.54 mm	UL94 V-0	30 Áin	0.76 Ám	2.54 mm	0.1 in	105 ░C	-55 °C	1.75 A	Copper Alloy	17.27 mm	0.68 in	Square	2	Solder	0.155 "	3.94 mm	Shrouded - 4 Wall	Push-Pull	Board to Board, Cable	50	Black	0.695 in	17.65 mm	Gold			200 µin	5.08 µm	Tin
3M N3433-5002RB	Header	6.1 mm	0.24 in	All	Through Hole, Right Angle	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	0.1 in	2.54 mm	UL94 V-0	30 Áin	0.76 Ám	2.54 mm	0.1 in	105 ░C	-55 °C	1.75 A	Copper Alloy	8.64 mm	0.34 in	Square	2	Solder	0.112 in	2.84 mm	Shrouded - 4 Wall	Push-Pull	Board to Board, Cable	50	Black			Gold			200 µin	5.08 µm	Tin
3M N3433-1003RB	Header	6.1 mm	0.24 in	All	Through Hole, Right Angle	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	0.1 in	2.54 mm	UL94 V-0	30 Áin	0.76 Ám	2.54 mm	0.1 in	105 ░C	-55 °C	1.75 A	Copper Alloy	7.87 mm	0.31 in	Square	2	Solder	0.155 "	3.94 mm	Shrouded - 3 Wall	Push-Pull	Board to Board, Cable	50	Black			Gold			200 µin	5.08 µm	Tin
3M N3433-6002RB	Header	6.1 mm	0.24 in	All	Through Hole	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	0.1 in	2.54 mm	UL94 V-0	30 Áin	0.76 Ám	2.54 mm	0.1 in	105 ░C	-55 °C	1.75 A	Copper Alloy	17.27 mm	0.68 in	Square	2	Solder	0.112 in	2.84 mm	Shrouded - 4 Wall	Push-Pull	Board to Board, Cable	50	Black	0.652 in	16.56 mm	Gold			200 µin	5.08 µm	Tin
3M N3433-5003RB	Header	6.1 mm	0.24 in	All	Through Hole, Right Angle	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Male Pin	0.1 in	2.54 mm	UL94 V-0	30 Áin	0.76 Ám	2.54 mm	0.1 in	105 ░C	-55 °C	1.75 A	Copper Alloy	8.64 mm	0.34 in	Square	2	Solder	0.155 "	3.94 mm	Shrouded - 4 Wall	Push-Pull	Board to Board, Cable	50	Black			Gold			200 µin	5.08 µm	Tin
