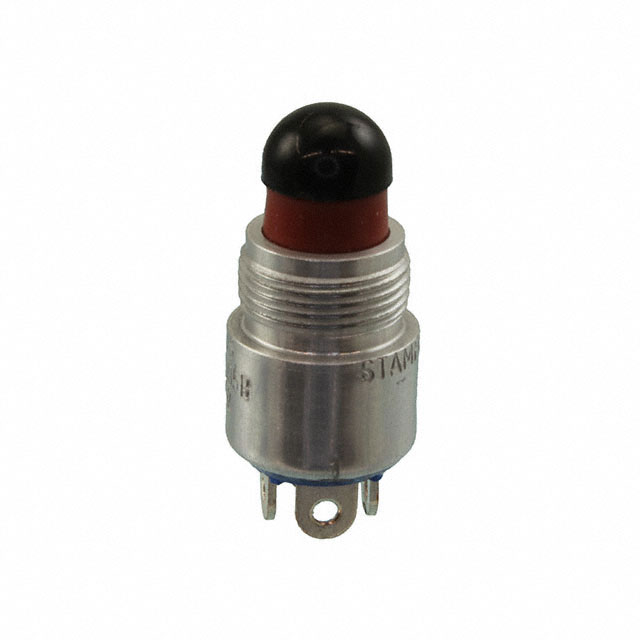

NX307005B
ActiveAmphenol NEXUS Technologies
TACTICAL PUSHBUTTON SC DOUBLE PO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NX307005B
ActiveAmphenol NEXUS Technologies
TACTICAL PUSHBUTTON SC DOUBLE PO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NX307005B |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Round, Plunger |
| Circuit | DPST-NO |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 10 A |
| Ingress Protection | Dust Proof |
| Mechanical Life | 500000 Cycles |
| Mounting Type | Panel Mount, Rear |
| Switch Function | Off-Mom |
| Termination Style | Solder Lug |
| Type | Standard |
| Voltage Rating - AC | 115 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 108.35 | |
| 10 | $ 98.72 | |||
| 25 | $ 92.10 | |||
| 50 | $ 88.49 | |||
| 100 | $ 82.47 | |||
Description
General part information
NX30700 Series
Pushbutton Switch DPST-NO Standard Panel Mount, Rear
