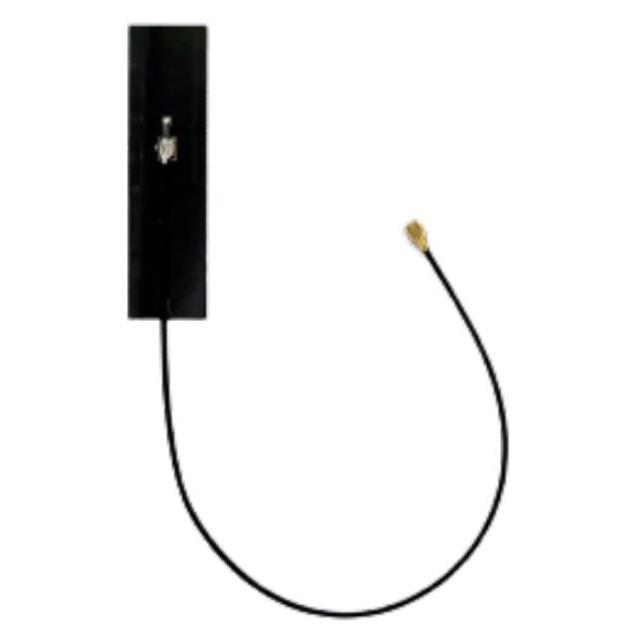

ST1225-20-001-A

Active

AMPHENOL RF

RF ANTENNA, 5.925 TO 7.125GHZ, PCB / IOT / ISM / WIFI 2 / WLAN / ZIGBEE, LINEAR, MHF1 CONNECTOR

Search across all available documentation for this part.

Active

AMPHENOL RF

RF ANTENNA, 5.925 TO 7.125GHZ, PCB / IOT / ISM / WIFI 2 / WLAN / ZIGBEE, LINEAR, MHF1 CONNECTOR

Technical Specifications

Parameters and characteristics for this part

RF ANTENNA, 5.925 TO 7.125GHZ, PCB / IOT / ISM / WIFI 2 / WLAN / ZIGBEE, LINEAR, MHF1 CONNECTOR

Part	Gain	Frequency Range [Min]	Frequency Range [Max]	Power - Max [Max]	Return Loss	Antenna Type	Mounting Type	Height (Max) [Max]	Height (Max) [Max]	Frequency (Center/Band)	Features	Features	Applications	RF Family/Standard	Number of Bands	Frequency Group	Frequency Group [Min]	Frequency Group [Max]
AMPHENOL RF ST1225-20-001-A	3.4 dBi	2.4 GHz, 5.15 GHz	2.5 GHz, 7.2 GHz	1 W	-10 dB	PCB Trace	Adhesive	0.028 in	0.7 mm	2.45 GHz, 6.18 GHz	Cable	100 mm	Wi-Fi	WiFi	2	4 GHz	2 GHz	3 GHz

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA Wi-Fi PCB Trace Adhesive
