2HT-250-2-WT-S-2

Active

BRADY

SLEEVE, 0.25 IN DIA X 1 IN W

Search across all available documentation for this part.

Active

BRADY

SLEEVE, 0.25 IN DIA X 1 IN W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1703.87

General part information

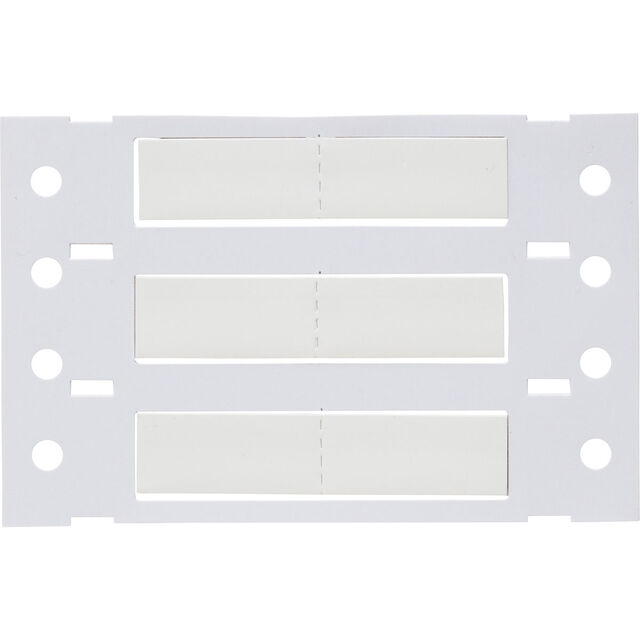

White Heat Shrinkable Label 1.00" W x 0.25" Dia (25.4mm x 6.4mm); Cable O.D. 0.13" ~ 0.22" (3.2mm ~ 5.5mm)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	2HT-250-2-WT-S-2	2HT-250 Series

Color	White	Black, White, Yellow
Label Size	-	3.2 - 50.8 mm
Label Size	-	0.13 - 50.8 in
Label Size [diameter]	6.4 mm	6.4 mm
Label Size [diameter]	0.25 in	0.25 in
Label Size [Max]	0.22 in	0.22 in
Label Size [Max]	5.5 mm	5.5 mm
Label Size [Min]	0.13 in	0.13 in
Label Size [Min]	3.2 mm	3.2 mm
Label Size [x]	25.4 mm	25.4 mm
Label Size [x]	1 in	1 in
Label Type	Heat Shrinkable	Heat Shrinkable
Material	Polyvinylidene Fluoride (PVDF)	Polyvinylidene Fluoride (PVDF)
Operating Temperature [Max]	225 °C	225 °C
Operating Temperature [Min]	-55 °C	-55 °C

SLEEVE, 0.25 IN DIA X 1 IN W

Part	Material	Color	Label Type	Label Size [Min]	Label Size [x]	Label Size [Min]	Label Size [Max]	Label Size [Max]	Label Size [x]	Label Size [diameter]	Label Size [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Label Size	Label Size
BRADY 2HT-250-2-BK-S-2	Polyvinylidene Fluoride (PVDF)	Black	Heat Shrinkable	0.13 in	25.4 mm	3.2 mm	0.22 in	5.5 mm	1 in	6.4 mm	0.25 in	-55 °C	225 °C
BRADY 2HT-250-2-WT-S	Polyvinylidene Fluoride (PVDF)	White	Heat Shrinkable									-55 °C	225 °C	3.2 mm, 5.5 mm, 6.4 mm, 50.8 mm	0.13 in, 0.22 in, 0.25 in, 50.8 mm
BRADY 2HT-250-2-BK-S	Polyvinylidene Fluoride (PVDF)	Black	Heat Shrinkable									-55 °C	225 °C	3.2 mm, 5.5 mm, 6.4 mm, 50.8 mm	0.13 in, 0.22 in, 0.25 in, 50.8 mm
BRADY 2HT-250-2-WT-S-2	Polyvinylidene Fluoride (PVDF)	White	Heat Shrinkable	0.13 in	25.4 mm	3.2 mm	0.22 in	5.5 mm	1 in	6.4 mm	0.25 in	-55 °C	225 °C
BRADY 2HT-250-2-YL-S-2	Polyvinylidene Fluoride (PVDF)	Yellow	Heat Shrinkable	0.13 in	25.4 mm	3.2 mm	0.22 in	5.5 mm	1 in	6.4 mm	0.25 in	-55 °C	225 °C
BRADY 2HT-250-2-YL-S	Polyvinylidene Fluoride (PVDF)	Yellow	Heat Shrinkable									-55 °C	225 °C	3.2 mm, 5.5 mm, 6.4 mm, 50.8 mm	0.13 in, 0.22 in, 0.25 in, 50.8 mm
BRADY 2HT-250-2-WT-J	Polyvinylidene Fluoride (PVDF)	White	Heat Shrinkable									-55 °C	225 °C	3.2 mm, 5.5 mm, 6.4 mm, 50.8 mm	0.13 in, 0.22 in, 0.25 in, 50.8 mm
