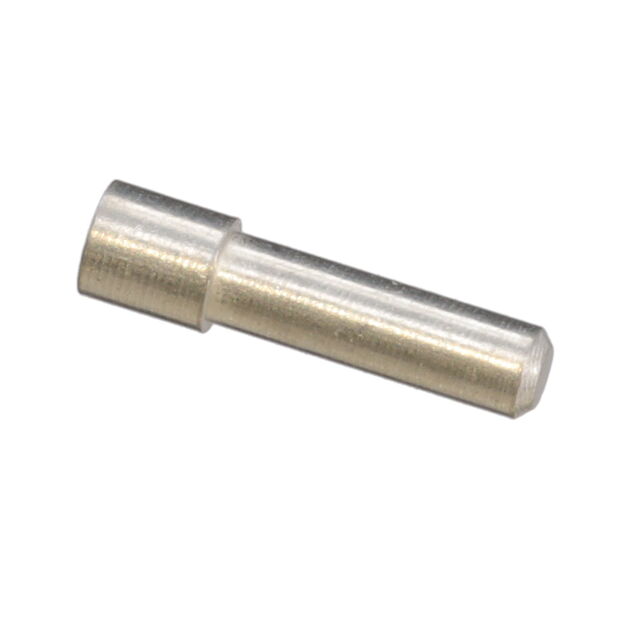

3100-0-15-80-34-80-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPin Receptacles

3100-0-15-80-34-80-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Deep-Dive with AI

DocumentsPin Receptacles

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3100-0-15-80-34-80-10-0

Accepts Pin Diameter	0.81 mm, 1.17 mm
Accepts Pin Diameter [Max]	0.046 in
Accepts Pin Diameter [Min]	0.032 "
Contact Finish	Tin
Contact Finish Thickness	200 Áin
Contact Finish Thickness	5.08 Ám
Contact Material	Beryllium Copper
Flange Diameter [diameter]	2.29 mm
Flange Diameter [diameter]	0.09 in
Length - Overall [x]	0.353 in
Length - Overall [x]	8.97 mm
Mounting Hole Diameter [diameter]	1.88 mm
Mounting Hole Diameter [diameter]	0.074 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	1.63 mm
Pin Hole Diameter [diameter]	0.064 in
Socket Depth	0.323 "
Socket Depth	8.2 mm
Tail Type	No Tail
Termination	Solder

3100-0 Series

Part	Length - Overall [x]	Length - Overall [x]	Operating Temperature [Min]	Operating Temperature [Max]	Tail Type	Contact Finish	Termination	Socket Depth	Socket Depth	Contact Finish Thickness	Contact Finish Thickness	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Pin Diameter	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material
Mill-Max Manufacturing Corp. 3100-0-15-15-34-27-10-0	0.353 in	8.97 mm	-55 °C	125 °C	No Tail	Gold	Solder	0.323 "	8.2 mm	0.76 Ám	30 Áin	1.63 mm	0.064 in	0.81 mm 1.17 mm	0.046 in	0.032 "	1.88 mm	0.074 in	2.29 mm	0.09 in	Beryllium Copper
Mill-Max Manufacturing Corp. 3100-0-15-01-34-14-10-0	0.353 in	8.97 mm	-55 °C	125 °C	No Tail	Gold	Solder	0.323 "	8.2 mm	0.25 Ám	10 Áin	1.63 mm	0.064 in	0.81 mm 1.17 mm	0.046 in	0.032 "	1.88 mm	0.074 in	2.29 mm	0.09 in	Beryllium Copper
Mill-Max Manufacturing Corp. 3100-0-15-80-34-27-10-0	0.353 in	8.97 mm	-55 °C	125 °C	No Tail	Gold	Solder	0.323 "	8.2 mm	0.76 Ám	30 Áin	1.63 mm	0.064 in	0.81 mm 1.17 mm	0.046 in	0.032 "	1.88 mm	0.074 in	2.29 mm	0.09 in	Beryllium Copper
Mill-Max Manufacturing Corp. 3100-0-15-80-34-14-10-0	0.353 in	8.97 mm	-55 °C	125 °C	No Tail	Gold	Solder	0.323 "	8.2 mm	0.25 Ám	10 Áin	1.63 mm	0.064 in	0.81 mm 1.17 mm	0.046 in	0.032 "	1.88 mm	0.074 in	2.29 mm	0.09 in	Beryllium Copper
Mill-Max Manufacturing Corp. 3100-0-15-01-34-27-10-0	0.353 in	8.97 mm	-55 °C	125 °C	No Tail	Gold	Solder	0.323 "	8.2 mm	0.76 Ám	30 Áin	1.63 mm	0.064 in	0.81 mm 1.17 mm	0.046 in	0.032 "	1.88 mm	0.074 in	2.29 mm	0.09 in	Beryllium Copper
Mill-Max Manufacturing Corp. 3100-0-15-80-34-80-10-0	0.353 in	8.97 mm	-55 °C	125 °C	No Tail	Tin	Solder	0.323 "	8.2 mm	5.08 Ám	200 Áin	1.63 mm	0.064 in	0.81 mm 1.17 mm	0.046 in	0.032 "	1.88 mm	0.074 in	2.29 mm	0.09 in	Beryllium Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.29
		10	$ 1.09
		100	$ 0.98
		1000	$ 0.71
		5000	$ 0.63
		10000	$ 0.59

Description

General part information

3100-0 Series

Pin Receptacle Connector 0.032" ~ 0.046" (0.81mm ~ 1.17mm) No Tail Solder

Documents

Technical documentation and resources

Pin Receptacles

Datasheet
