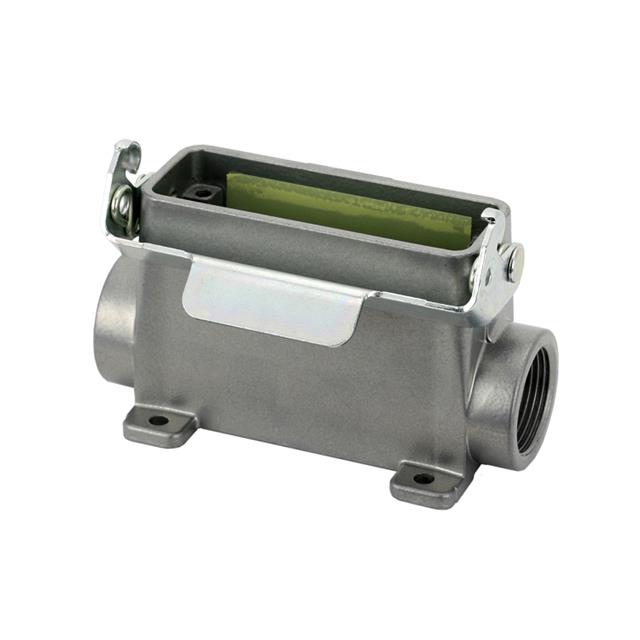

C146 10F025 501 2

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZA16 PG16

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN BASE SIDE ENTRY SZA16 PG16

Technical Specifications

Parameters and characteristics for this part

Specification	C146 10F025 501 2

Connector Type	Base - Box Mount
Housing Material	Aluminum Alloy, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	A16
Size / Dimension [x]	101 mm
Size / Dimension [x]	3.976 "
Size / Dimension [y]	1.969 in
Size / Dimension [y]	50 mm
Size / Dimension [z]	2.244 "
Size / Dimension [z]	57 mm
Style	Side Entry
Thread Size	PG16

Part	Thread Size	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Connector Type	Style	Housing Material	Ingress Protection	Size	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location
Amphenol Tuchel Industrial C146 10F025 501 2	PG16	2.244 "	1.969 in	101 mm	3.976 "	57 mm	50 mm	Base - Box Mount	Side Entry	Aluminum Alloy Die Cast	IP65 - Dust Tight Water Resistant	A16	100 °C	-40 °C	Locking Clip (1) on Base Bottom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 20.26

General part information

Base - Box Mount Connector Side Entry PG16 A16 IP65 - Dust Tight, Water Resistant
