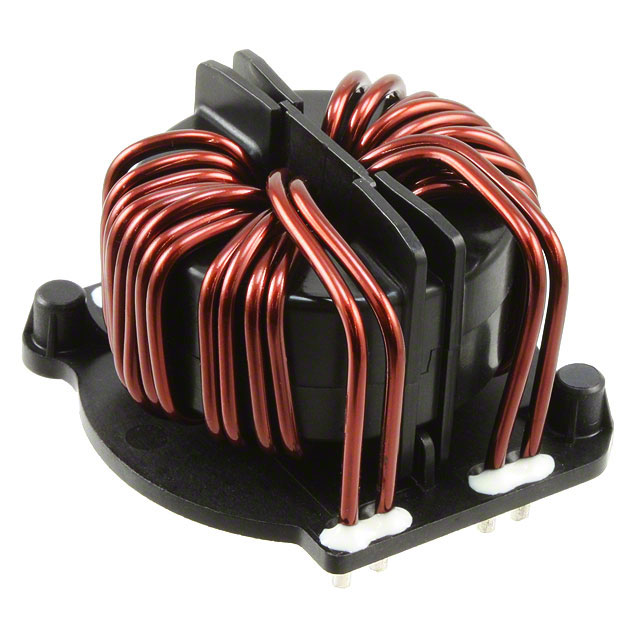

RB6122-36-0M5
ActiveTE Connectivity Raychem Cable Protection
CMC 450UH 36A 2LN TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RB6122-36-0M5
ActiveTE Connectivity Raychem Cable Protection
CMC 450UH 36A 2LN TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RB6122-36-0M5 |
|---|---|
| Current Rating (Max) [Max] | 36 A |
| DC Resistance (DCR) (Max) | 1.5 mOhm |
| Filter Type | Power Line |
| Height (Max) [Max] | 1.496 in |
| Height (Max) [Max] | 38 mm |
| Inductance @ Frequency | 1 kHz, 450 µH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Horizontal |
| Package / Case | 4 Lead |
| Size / Dimension [x] | 61 mm |
| Size / Dimension [x] | 2.402 in |
| Size / Dimension [y] | 2.276 " |
| Size / Dimension [y] | 57.8 mm |
| Voltage Rating - AC | 600 V |
| Voltage Rating - DC | 1 kVDC |
| Voltage Rating - DC | 1 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.26 | |
| 10 | $ 20.34 | |||
| 25 | $ 19.39 | |||
Description
General part information
RB6122 Series
450 µH @ 1 kHz 2 Line Common Mode Choke Through Hole 36A DCR 1.5mOhm (Typ)
