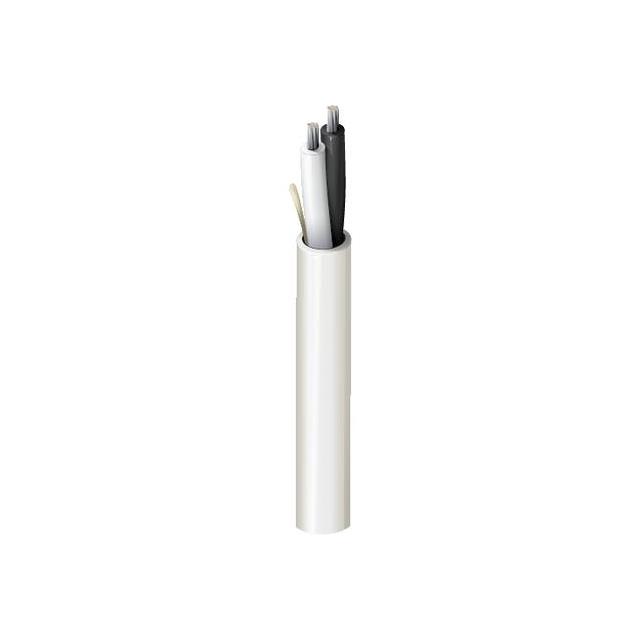

6100UH 877U1000

Active

Belden Inc.

CABLE 2COND 14AWG NATURAL

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 14AWG NATURAL

Technical Specifications

Parameters and characteristics for this part

Specification	6100UH 877U1000

Cable Type	Multi-Conductor
Conductor Insulation	Low Smoke Poly-Vinyl Chloride (LSPVC)
Conductor Material	Copper, Tinned
Features	Rip Cord
Jacket (Insulation) Diameter [diameter]	5.74 mm
Jacket (Insulation) Diameter [diameter]	0.226 in
Jacket (Insulation) Material	Low Smoke Poly-Vinyl Chloride (LSPVC), Plenum
Jacket (Insulation) Thickness	0.015 in
Jacket (Insulation) Thickness	0.381 mm
Jacket Color	Natural
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-10 °C
Ratings	UL Style TC
Usage	Sound, Security
Voltage	150 V
Wire Gauge	13.5 AWG

Part	Conductor Insulation	Ratings	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Number of Conductors	Wire Gauge	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Jacket Color	Length	Length	Voltage	Conductor Material	Cable Type	Features
Belden Inc. 6100UH 8771000	Low Smoke Poly-Vinyl Chloride (LSPVC)	UL Style TC	0.015 in	0.381 mm	Security Sound	2	13.5 AWG	5.74 mm	0.226 in	-10 °C	75 ░C	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	Natural	1000 ft	304.8 m	150 V	Copper Tinned	Multi-Conductor	Rip Cord
Belden Inc. 6100UH 008U1000	Low Smoke Poly-Vinyl Chloride (LSPVC)	UL Style TC	0.015 in	0.381 mm	Security Sound	2	13.5 AWG	5.74 mm	0.226 in	-10 °C	75 ░C	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	Gray	1000 ft	304.8 m	150 V	Copper Tinned	Multi-Conductor	Rip Cord
Belden Inc. 6100UH 877U1000	Low Smoke Poly-Vinyl Chloride (LSPVC)	UL Style TC	0.015 in	0.381 mm	Security Sound	2	13.5 AWG	5.74 mm	0.226 in	-10 °C	75 ░C	Low Smoke Poly-Vinyl Chloride (LSPVC) Plenum	Natural	1000 ft	304.8 m	150 V	Copper Tinned	Multi-Conductor	Rip Cord

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 Conductor Multi-Conductor Cable Natural 14 AWG 1000.0' (304.8m)
