173-E09-113R461

Active

NorComp Inc.

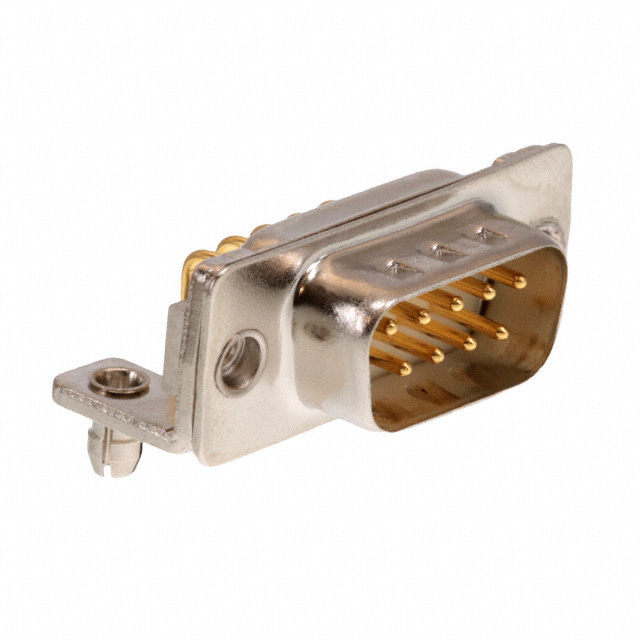

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

173-E09-113R461

Active

NorComp Inc.

CONN D-SUB PLUG 9POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 7.08
		10	$ 5.42
		25	$ 4.89
		40	$ 4.65
		80	$ 4.31
		230	$ 3.86
		440	$ 3.61
		945	$ 3.35
		2400	$ 3.07

Description

General part information

173-E09 Series

9 Position D-Sub Plug, Male Pins Connector

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	173-E09-113R461	173-E09 Series

Backset Spacing	0.283 in	0.283 in
Backset Spacing	7.2 mm	7.2 mm
Color	White	White
Connector Style	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins, Receptacle, Female Sockets
Contact Finish	Gold	Gold
Contact Finish Thickness	Flash	Flash
Contact Material	Brass	Brass, Copper
Contact Type	Signal	Signal
Current Rating (Amps)	5 A	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T	Polyamide (PA6T), Nylon 6T, Polybutylene Terephthalate (PBT)
Features	Grounding Indents, Mounting Brackets, Board Lock	Grounding Indents, Mounting Brackets, Board Lock
Flange Feature	Housing/Shell (4-40)	Housing/Shell (Unthreaded), Housing/Shell (4-40), Female Screwlock (4-40), Mating Side, Standard Screws (4-40)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Right Angle, Panel Mount, Through Hole, Right Angle
Number of Positions	9	9
Number of Rows	2	2
Operating Temperature	-	-55 °C
Operating Temperature	-	125 °C
Shell Material, Finish	Nickel Plated, Steel	Nickel Plated, Steel, Steel, Yellow Chromate Plated
Shell Size, Connector Layout [custom]	DE, E	DE, E
Shell Size, Connector Layout [custom]	1	1
Termination	Solder	Solder

173-E09 Series

D SUB CONNECTOR, DB9, PLUG, 173-E M SERIES, 9 CONTACTS, DE, THROUGH HOLE

Part	Contact Type	Contact Finish	Shell Material, Finish	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Features	Connector Type	Mounting Type	Material Flammability Rating	Backset Spacing	Backset Spacing	Flange Feature	Connector Style	Dielectric Material	Contact Material	Current Rating (Amps)	Number of Rows	Termination	Color	Contact Finish Thickness	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]
NorComp Inc. 173-E09-113R001	Signal	Gold	Nickel Plated, Steel	DE, E	1	Grounding Indents	Male Pins, Plug	Panel Mount, Right Angle, Through Hole	UL94 V-0	0.283 in	7.2 mm	Housing/Shell (Unthreaded)	D-Sub	Polyamide (PA6T), Nylon 6T	Brass	5 A	2	Solder	White	Flash	9
NorComp Inc. 173-E09-211R001	Signal	Gold	Steel, Yellow Chromate Plated	DE, E	1		Receptacle, Female Sockets	Panel Mount, Right Angle, Through Hole	UL94 V-0	0.283 in	7.2 mm	Housing/Shell (Unthreaded)	D-Sub	Polyamide (PA6T), Nylon 6T		5 A	2	Solder	White	Flash	9
NorComp Inc. 173-E09-113R461	Signal	Gold	Nickel Plated, Steel	DE, E	1	Board Lock, Grounding Indents, Mounting Brackets	Male Pins, Plug	Panel Mount, Right Angle, Through Hole	UL94 V-0	0.283 in	7.2 mm	Housing/Shell (4-40)	D-Sub	Polyamide (PA6T), Nylon 6T	Brass	5 A	2	Solder	White	Flash	9
NorComp Inc. 173-E09-211R141	Signal	Gold	Steel, Yellow Chromate Plated	DE, E	1	Mounting Brackets	Receptacle, Female Sockets	Panel Mount, Right Angle, Through Hole	UL94 V-0	0.283 in	7.2 mm	Female Screwlock (4-40), Mating Side	D-Sub	Polyamide (PA6T), Nylon 6T		5 A	2	Solder	White	Flash	9
NorComp Inc. 173-E09-111-001	Signal	Gold	Steel, Yellow Chromate Plated	DE, E	1		Male Pins, Plug	Panel Mount, Right Angle, Through Hole	UL94 V-0	0.283 in	7.2 mm	Housing/Shell (Unthreaded)	D-Sub	Polybutylene Terephthalate (PBT)		5 A	2	Solder	White	Flash	9
NorComp Inc. 173-E09-112-141	Signal	Gold		DE, E	1	Grounding Indents, Mounting Brackets	Male Pins, Plug	Panel Mount, Right Angle, Through Hole	UL94 V-0	0.283 in	7.2 mm	Female Screwlock (4-40), Mating Side	D-Sub	Polybutylene Terephthalate (PBT)	Brass	5 A	2	Solder	White	Flash	9
NorComp Inc. 173-E09-212-141	Signal	Gold		DE, E	1	Mounting Brackets	Receptacle, Female Sockets	Panel Mount, Right Angle, Through Hole	UL94 V-0	0.283 in	7.2 mm	Female Screwlock (4-40), Mating Side	D-Sub	Polybutylene Terephthalate (PBT)		5 A	2	Solder	White	Flash	9
NorComp Inc. 173-E09-213R141	Signal	Gold	Nickel Plated, Steel	DE, E	1	Mounting Brackets	Receptacle, Female Sockets	Through Hole, Right Angle	UL94 V-0	0.283 in	7.2 mm	Female Screwlock (4-40), Mating Side	D-Sub	Polyamide (PA6T), Nylon 6T	Copper	5 A	2	Solder	White	Flash	9	-55 °C	125 °C
NorComp Inc. 173-E09-213R001	Signal	Gold	Nickel Plated, Steel	DE, E	1		Receptacle, Female Sockets	Through Hole, Right Angle	UL94 V-0	0.283 in	7.2 mm	Housing/Shell (Unthreaded)	D-Sub	Polyamide (PA6T), Nylon 6T	Copper	5 A	2	Solder	White	Flash	9	-55 °C	125 °C
NorComp Inc. 173-E09-213R461	Signal	Gold	Nickel Plated, Steel	DE, E	1	Board Lock, Mounting Brackets	Receptacle, Female Sockets	Through Hole, Right Angle	UL94 V-0	0.283 in	7.2 mm	Housing/Shell (4-40)	D-Sub	Polyamide (PA6T), Nylon 6T	Copper	5 A	2	Solder	White	Flash	9	-55 °C	125 °C
