EVAL BOARD FOR LT4275 90W

Search across all available documentation for this part.

Obsolete

Analog Devices

EVAL BOARD FOR LT4275 90W

Technical Specifications

Parameters and characteristics for this part

Part	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Power - Max [Max]	Standards	Number of Channels	Supplier Device Package	Package / Case [x]	Package / Case [x]	Type	Supplied Contents	Utilized IC / Part	Function	Primary Attributes	Contents
Analog Devices LT4275CIDD#PBF	10-WFDFN Exposed Pad	Surface Mount	85 °C	-40 °C	23 V	60 V	13 W	802.3af (PoE)	1	10-DFN (3x3)
Analog Devices LT4275BHMS#TRPBF	10-MSOP 10-TFSOP	Surface Mount	125 °C	-40 °C	23 V	60 V	25.5 W	802.3af (PoE) 802.3at (PoE+)	1	10-MSOP	3 mm	0.118 in
Analog Devices LT4275AIMS#TRPBF	10-MSOP 10-TFSOP	Surface Mount	85 °C	-40 °C	23 V	60 V	90 W	802.3af 802.3at LTPoE++	1	10-MSOP	3 mm	0.118 in
Analog Devices LT4275AHDD#PBF	10-WFDFN Exposed Pad	Surface Mount	125 °C	-40 °C	23 V	60 V	90 W	802.3af 802.3at LTPoE++	1	10-DFN (3x3)
Analog Devices LT4275CIMS#PBF	10-MSOP 10-TFSOP	Surface Mount	85 °C	-40 °C	23 V	60 V	13 W	802.3af (PoE)	1	10-MSOP	3 mm	0.118 in
Analog Devices LT4275CHDD#TRPBF	10-WFDFN Exposed Pad	Surface Mount	125 °C	-40 °C	23 V	60 V	13 W	802.3af (PoE)	1	10-DFN (3x3)
Analog Devices DC1788B-A													Power Management	Board(s)	LT4275	Power Over Ethernet (POE)	LTPoE++ PoE PoE+	Board(s)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

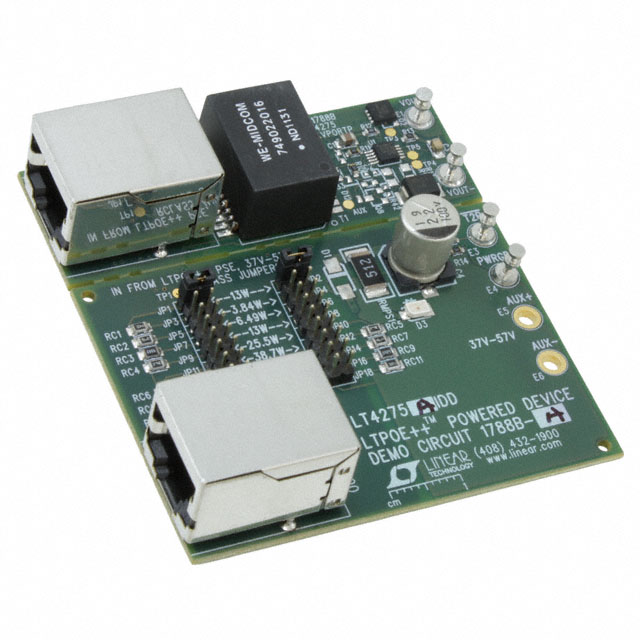

LT4275 Power over Ethernet (PoE) Power Management Evaluation Board
