1883255

Active

Phoenix Contact

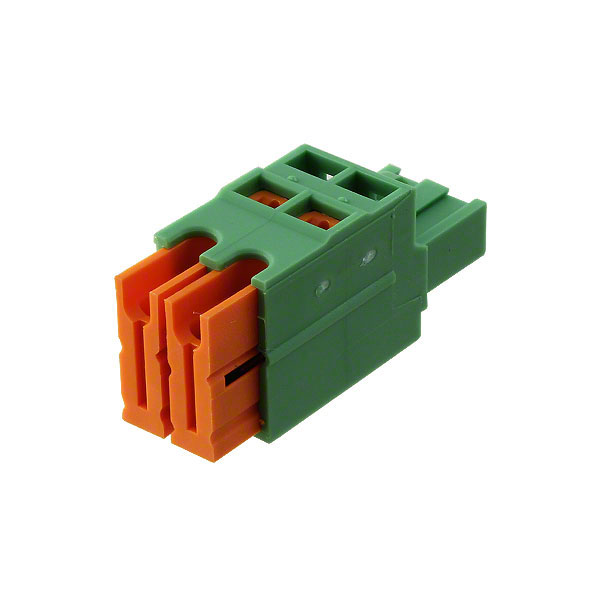

PLUGGABLE TERMINAL BLOCKS 2 POS 5.08MM PITCH PLUG 20-18 AWG IDC

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS 2 POS 5.08MM PITCH PLUG 20-18 AWG IDC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1883255	QC Series

Color	Green	Green
Contact Mating Finish	Tin	Tin
Current - IEC	10 A	10 - 12 A
Current - UL	10 A	10 A
Features	-	Mating Flange
Housing Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Insulation Height	0.591 in	0.591 - 0.772 in
Insulation Height	15 mm	15 - 19.6 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	2	2 - 15
Pitch [x]	0.2 in	0.197 - 0.2 in
Pitch [x]	5.08 mm	5 - 5.08 mm
Positions Per Level	2	2 - 15
Termination Style	IDC	IDC, Screwless - IDC
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - IEC	1 kV	1 kV
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	22 AWG	22 - 24 AWG
Wire Gauge or Range - AWG [Min]	18 AWG	16 - 18 AWG
Wire Gauge or Range - mm˛ [Max]	1 mm˛	1 - 1.5 mm˛
Wire Gauge or Range - mm˛ [Min]	0.5 mm˛	0.2 - 0.5 mm˛
Wire Gauge or Range - mm²	-	0.5 mm²
Wire Gauge or Range - mm²	-	1 mm²

Pluggable Terminal Blocks 14 Pos 5.08mm pitch Plug 20-18 AWG IDC

Part	Number of Levels	Insulation Height	Insulation Height	Number of Positions	Housing Material	Current - UL	Current - IEC	Voltage - UL	Type	Material Flammability Rating	Voltage - IEC	Color	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Termination Style	Mounting Type	Contact Mating Finish	Pitch [x]	Pitch [x]	Positions Per Level	Features	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]
Phoenix Contact 1883828	1	0.591 in	15 mm	14	Polyamide (PA), Nylon	10 A	10 A	300 V	Plug, Female Sockets	UL94 V-0	1 kV	Green	1 mm˛	0.5 mm˛	18 AWG	22 AWG	IDC	Free Hanging (In-Line)	Tin	0.2 in	5.08 mm	14
Phoenix Contact 1883255	1	0.591 in	15 mm	2	Polyamide (PA), Nylon	10 A	10 A	300 V	Plug, Female Sockets	UL94 V-0	1 kV	Green	1 mm˛	0.5 mm˛	18 AWG	22 AWG	IDC	Free Hanging (In-Line)	Tin	0.2 in	5.08 mm	2
Phoenix Contact 1718096	1	0.772 "	19.6 mm	15	Polyamide (PA), Nylon	10 A	12 A	300 V	Plug, Female Sockets	UL94 V-0	1 kV	Green	1.5 mm˛	0.2 mm˛	16 AWG	24 AWG	Screwless - IDC	Free Hanging (In-Line)	Tin	0.197 in	5 mm	15
Phoenix Contact 1883352	1	0.591 in	15 mm	2	Polyamide (PA), Nylon	10 A	10 A	300 V	Plug, Female Sockets	UL94 V-0	1 kV	Green			18 AWG	22 AWG	IDC	Free Hanging (In-Line)	Tin	0.2 in	5.08 mm	2	Mating Flange	0.5 mm²	1 mm²
Phoenix Contact 1883831	1	0.591 in	15 mm	15	Polyamide (PA), Nylon	10 A	10 A	300 V	Plug, Female Sockets	UL94 V-0	1 kV	Green	1 mm˛	0.5 mm˛	18 AWG	22 AWG	IDC	Free Hanging (In-Line)	Tin	0.2 in	5.08 mm	15

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pluggable Terminal Blocks 14 Pos 5.08mm pitch Plug 20-18 AWG IDC
