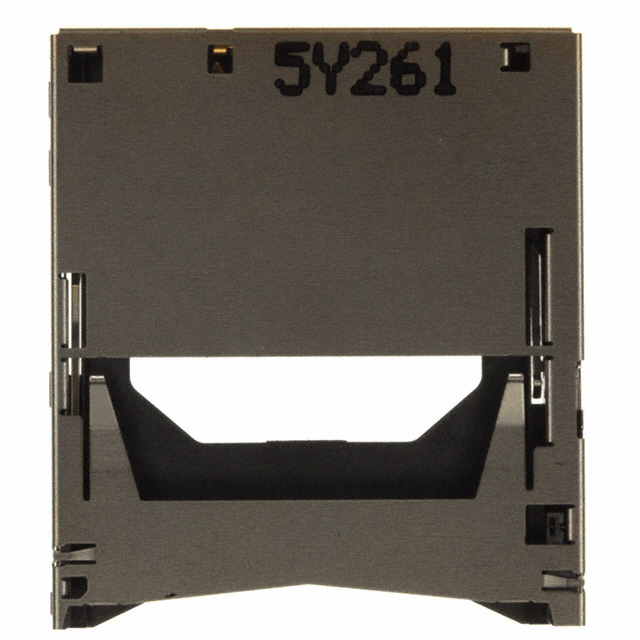

SG5S009V1A1R400

Obsolete

JAE Electronics

CONN SD CARD PUSH-PUSH R/A SMD

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN SD CARD PUSH-PUSH R/A SMD

Technical Specifications

Parameters and characteristics for this part

Part	Card Type	Insertion, Removal Method	Number of Positions	Height Above Board [z]	Height Above Board [z]	Contact Finish	Connector Type	Mounting Type	Features
JAE Electronics SG5S009V1D2	Secure Digital - SD	Push In Push Out	13 (9 + 4)	4.55 mm	0.179 in	Gold	Connector and Ejector	Surface Mount Right Angle	Board Guide Switch
JAE Electronics SG5S009V1A1	Secure Digital - SD	Push In Push Out	13 (9 + 4)	2.8 mm	0.11 "	Gold	Connector and Ejector	Surface Mount Right Angle	Board Guide Switch
JAE Electronics SG5S009V1A1R400	Secure Digital - SD	Push In Push Out	13 (9 + 4)	2.8 mm	0.11 "	Gold	Connector and Ejector	Surface Mount Right Angle	Board Guide Switch

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

13 (9 + 4) Position Card Connector Secure Digital - SD Surface Mount, Right Angle Gold
