213-1/2"X60YD

Active

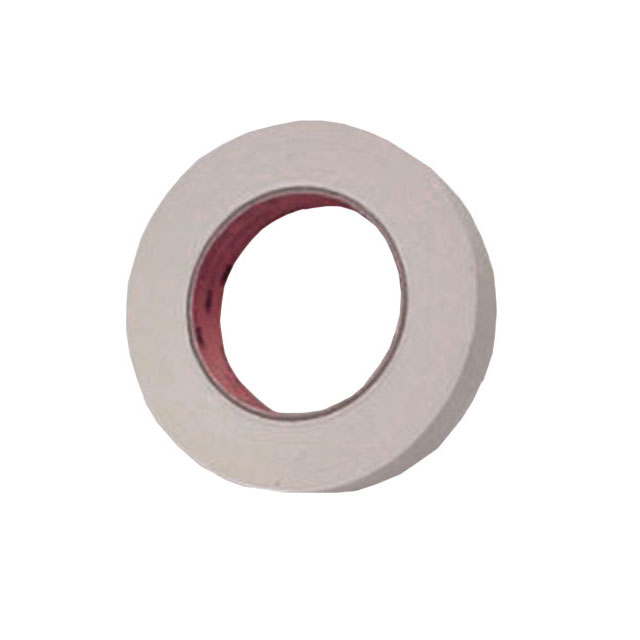

TAPE MASKING TAN 1/2"X60YDS

Search across all available documentation for this part.

Active

TAPE MASKING TAN 1/2"X60YDS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	213-1/2"X60YD	213 Series

Adhesive	Rubber	Rubber
Backing, Carrier	Crepe Paper	Crepe Paper
Color	Tan	Tan
Length	60 yds	60 yds
Length	55 m	55 m
Length	180 ft	180 ft
Shelf Life	12 Months	12 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C	27 - 80 °F
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C	16 - 60 °F
Tape Type	Masking	Masking
Temperature Range	350 °F	350 °F
Thickness	0.0065 in	0.0065 in
Thickness	6.5 mils	6.5 mils
Thickness	0.165 mm	0.165 mm
Usage	High Temperature Adhesion	High Temperature Adhesion
Width	0.5 in	0.5 in
Width	12.7 mm	12.7 - 38.1 mm
Width	0.5 in	0.5 - 1.5 in
Width	-	1 1/2
Width	-	2 "
Width	-	50.8 mm
Width	-	76.2 mm
Width	-	3 in

TAPE MASKING TAN 1/2"X60YDS

Part	Tape Type	Usage	Length	Length	Length	Adhesive	Shelf Life Start	Backing, Carrier	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Width	Width	Width	Shelf Life	Thickness	Thickness	Thickness	Color	Temperature Range	Width	Width [y]	Width [y]	Width [x]	Width [x]
3M 213-1/2"X60YD	Masking	High Temperature Adhesion	60 yds	55 m	180 ft	Rubber	Date of Manufacture	Crepe Paper	16 °C, 60 °F	27 °C, 80 °F	0.5 in	12.7 mm	0.5 in	12 Months	0.0065 in	6.5 mils	0.165 mm	Tan	350 °F
3M 213-1.5"X60YD	Masking	High Temperature Adhesion	60 yds	55 m	180 ft	Rubber	Date of Manufacture	Crepe Paper	16 °C, 60 °F	27 °C, 80 °F		38.1 mm	1.5 "	12 Months	0.0065 in	6.5 mils	0.165 mm	Tan	350 °F	1 1/2
3M 213-2"X60YD	Masking	High Temperature Adhesion	60 yds	55 m	180 ft	Rubber	Date of Manufacture	Crepe Paper	16 °C, 60 °F	27 °C, 80 °F				12 Months	0.0065 in	6.5 mils	0.165 mm	Tan	350 °F		2 "	50.8 mm
3M 213-3"X60YD	Masking	High Temperature Adhesion	60 yds	55 m	180 ft	Rubber	Date of Manufacture	Crepe Paper	16 °C, 60 °F	27 °C, 80 °F				12 Months	0.0065 in	6.5 mils	0.165 mm	Tan	350 °F				76.2 mm	3 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	72	$ 40.95
