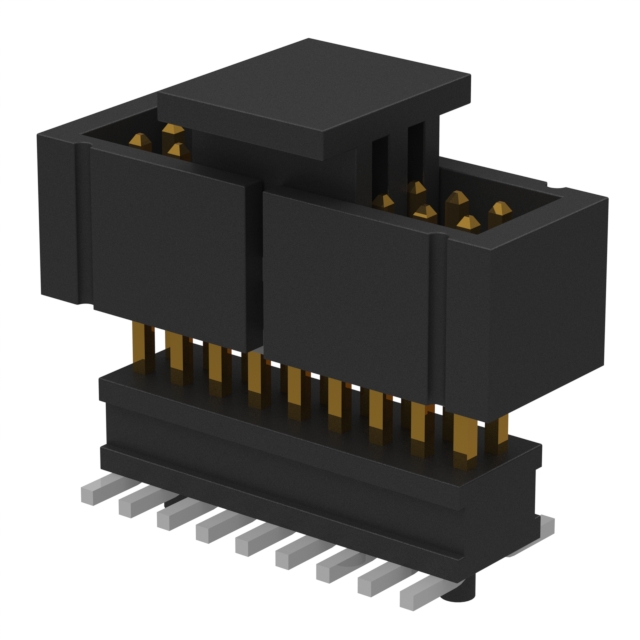

FW-09-03-L-D-290-075-ES-A-P-TR

Active

Samtec Inc.

CONN HDR 18POS 0.05 STACK SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFW Series Other Related Documents 02 Datasheet +3

FW-09-03-L-D-290-075-ES-A-P-TR

Active

Samtec Inc.

CONN HDR 18POS 0.05 STACK SMD

Deep-Dive with AI

DocumentsFW Series Other Related Documents 02 Datasheet +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FW-09-03-L-D-290-075-ES-A-P-TR

Color	Black
Contact Finish - Post (Mating)	Gold
Contact Finish Thickness - Post (Mating)	0.25 Ám
Contact Finish Thickness - Post (Mating)	10 Áin
Length - Overall Pin [x]	0.365 in
Length - Overall Pin [x]	9.271 mm
Length - Post (Mating) [x]	0.075 in
Length - Post (Mating) [x]	1.905 mm
Length - Stack Height [x]	7.366 mm
Length - Stack Height [x]	0.29 in
Mounting Type	Surface Mount
Number of Positions	18
Number of Rows	2
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Row Spacing	1.27 mm
Row Spacing	0.05 in
Termination	Solder

FW-09-03 Series

Part	Row Spacing	Row Spacing	Number of Positions	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Number of Rows	Contact Finish - Post (Mating)	Color	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Overall Pin	Length - Overall Pin	Length - Stack Height [z]	Length - Stack Height [z]	Pitch [x]	Pitch [x]	Mounting Type	Termination	Length - Overall Pin [x]	Length - Overall Pin [x]	Length - Stack Height [x]	Length - Stack Height [x]
Samtec Inc. FW-09-03-F-D-215-075	1.27 mm	0.05 in	18	0.075 in	1.905 mm	2	Gold	Black	3 Áin	0.076 Ám	7.366 mm	0.29 in	5.461 mm	0.215 in	0.05 in	1.27 mm	Surface Mount	Solder
Samtec Inc. FW-09-03-L-D-290-075-ES-A-P-TR	1.27 mm	0.05 in	18	0.075 in	1.905 mm	2	Gold	Black	10 Áin	0.25 Ám					0.05 in	1.27 mm	Surface Mount	Solder	0.365 in	9.271 mm	7.366 mm	0.29 in
Samtec Inc. FW-09-03-G-D-250-065	1.27 mm	0.05 in	18	0.065 in	1.651 mm	2	Gold	Black	10 Áin	0.25 Ám					0.05 in	1.27 mm	Surface Mount	Solder	0.315 "	8 mm	6.35 mm	0.25 in
Samtec Inc. FW-09-03-L-D-215-135	1.27 mm	0.05 in	18	0.135 in	3.429 mm	2	Gold	Black	10 Áin	0.25 Ám			5.461 mm	0.215 in	0.05 in	1.27 mm	Surface Mount	Solder	0.35 in	8.89 mm
Samtec Inc. FW-09-03-F-D-220-065-ES-A	1.27 mm	0.05 in	18	0.065 in	1.651 mm	2	Gold	Black	3 Áin	0.076 Ám					0.05 in	1.27 mm	Surface Mount	Solder	0.285 in	7.239 mm
Samtec Inc. FW-09-03-G-D-240-090-A	1.27 mm	0.05 in	18	0.09 in	2.286 mm	2	Gold	Black	10 Áin	0.25 Ám					0.05 in	1.27 mm	Surface Mount	Solder	0.33 "	8.382 mm	6.096 mm	0.24 in
Samtec Inc. FW-09-03-L-D-233-065	1.27 mm	0.05 in	18	0.065 in	1.651 mm	2	Gold	Black	10 Áin	0.25 Ám			5.918 mm	0.233 in	0.05 in	1.27 mm	Surface Mount	Solder	0.298 in	7.569 mm
Samtec Inc. FW-09-03-G-D-325-075-ES	1.27 mm	0.05 in	18	0.075 in	1.905 mm	2	Gold	Black	10 Áin	0.25 Ám			8.255 mm	0.325 in	0.05 in	1.27 mm	Surface Mount	Solder	0.4 in	10.16 mm
Samtec Inc. FW-09-03-G-D-230-075-EP-A	1.27 mm	0.05 in	18	0.075 in	1.905 mm	2	Gold	Black	10 Áin	0.25 Ám					0.05 in	1.27 mm	Surface Mount	Solder	0.305 in	7.747 mm
Samtec Inc. FW-09-03-G-D-250-075-EP-A	1.27 mm	0.05 in	18	0.075 in	1.905 mm	2	Gold	Black	10 Áin	0.25 Ám					0.05 in	1.27 mm	Surface Mount	Solder	0.325 "	8.255 mm	6.35 mm	0.25 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 9.03
		10	$ 6.93
		100	$ 5.38
	Digi-Reel®	1	$ 9.03
		10	$ 6.93
		100	$ 5.38
	Tape & Reel (TR)	275	$ 3.99
