IMCSN-1500-48A

Active

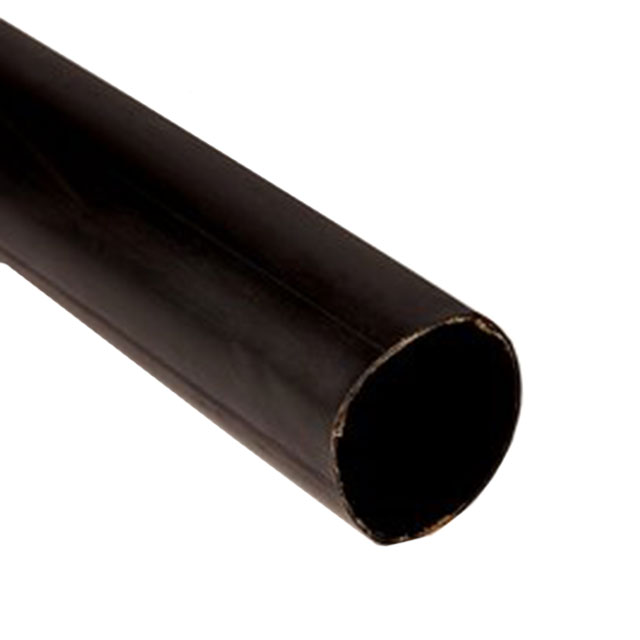

3M HEAT SHRINK MEDIUM-WALL CABLE SLEEVE IMCSN-1500-48A: 1/0-250 KCMIL, 4 FT LENGTH, 20 PER BOX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

IMCSN-1500-48A

Active

3M HEAT SHRINK MEDIUM-WALL CABLE SLEEVE IMCSN-1500-48A: 1/0-250 KCMIL, 4 FT LENGTH, 20 PER BOX

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.45
		5	$ 43.55
		10	$ 40.64
		25	$ 38.61
		50	$ 37.74
		100	$ 36.87
Newark	Each	1	$ 56.63
		25	$ 54.04
		50	$ 52.60
		100	$ 50.88
		250	$ 49.15

Description

General part information

IMCSN Series

Heat Shrink Tubing, Flexible 1.500" (38.10mm) 3 to 1 Black 4.00' (1.22m)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IMCSN-1500-48A	IMCSN Series

Color	Black	Black
Features	Adhesive Lined	Adhesive Lined
Inner Diameter - Recovered	-	0.43 - 0.6 in
Inner Diameter - Recovered	-	10.92 - 15.24 mm
Inner Diameter - Recovered [diameter]	0.5 in	0.15 - 1.5 in
Inner Diameter - Recovered [diameter]	12.7 mm	3.81 - 38.1 mm
Inner Diameter - Supplied [diameter]	38.1 mm	10.16 - 109.22 mm
Inner Diameter - Supplied [diameter]	1.5 in	0.4 - 4.3 in
Length	-	7.6 m
Length	-	25 ft
Length [x]	1.22 m	1.22 m
Length [x]	4 ft	4 ft
Material	Polyolefin (PO)	Polyolefin (PO)
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shelf Life	24 Months	24 - 120 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Shrinkage Ratio [Max]	3	3
Shrinkage Ratio [Min]	1	1
Storage/Refrigeration Temperature	40 °C	40 °C
Storage/Refrigeration Temperature	104 °F	104 °F
Type	Tubing, Flexible	Tubing, Flexible

IMCSN Series

0.8, 3:1 MEDIUM WALL, 25 BLACK, NO ADHESIVE, 1 REEL

Part	Storage/Refrigeration Temperature	Storage/Refrigeration Temperature	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Color	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length	Length	Type	Shelf Life	Operating Temperature [Min]	Operating Temperature [Max]	Material	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Features	Length [x]	Length [x]	Inner Diameter - Recovered	Inner Diameter - Recovered	Shelf Life Start
3M IMCSN-0800-25-U	40 °C	104 °F	1	3	Black	20.32 mm	0.8 in	7.6 m	25 ft	Tubing, Flexible	24 Months	-55 °C	110 °C	Polyolefin (PO)	0.22 in	5.59 mm
3M IMCSN-4300-25-U	40 °C	104 °F	1	3	Black	109.22 mm	4.3 in	7.6 m	25 ft	Tubing, Flexible	24 Months	-55 °C	110 °C	Polyolefin (PO)	1.5 in	38.1 mm
3M IMCSN-1500-25-U	40 °C	104 °F	1	3	Black	38.1 mm	1.5 in	7.6 m	25 ft	Tubing, Flexible	24 Months	-55 °C	110 °C	Polyolefin (PO)	0.5 in	12.7 mm
3M IMCSN-1700-48A	40 °C	104 °F	1	3	Black	43.18 mm	1.7 in			Tubing, Flexible	24 Months	-55 °C	110 °C	Polyolefin (PO)			Adhesive Lined	1.22 m	4 ft	0.6 in	15.24 mm
3M IMCSN-0400-25-U	40 °C	104 °F	1	3	Black	10.16 mm	0.4 in	7.6 m	25 ft	Tubing, Flexible	24 Months	-55 °C	110 °C	Polyolefin (PO)	0.15 "	3.81 mm
3M IMCSN-1100-48A	40 °C	104 °F	1	3	Black	27.94 mm	1.1 in			Tubing, Flexible	120 Months	-55 °C	110 °C	Polyolefin (PO)	0.37 in	9.4 mm	Adhesive Lined	1.22 m	4 ft			Date of Manufacture
3M IMCSN-1500-48A	40 °C	104 °F	1	3	Black	38.1 mm	1.5 in			Tubing, Flexible	24 Months	-55 °C	110 °C	Polyolefin (PO)	0.5 in	12.7 mm	Adhesive Lined	1.22 m	4 ft			Date of Manufacture
3M IMCSN-1300-48A	40 °C	104 °F	1	3	Black	33.02 mm	1.3 in			Tubing, Flexible	24 Months	-55 °C	110 °C	Polyolefin (PO)			Adhesive Lined	1.22 m	4 ft	0.43 in	10.92 mm
3M IMCSN-1300-25-U	40 °C	104 °F	1	3	Black	33.02 mm	1.3 in	7.6 m	25 ft	Tubing, Flexible	24 Months	-55 °C	110 °C	Polyolefin (PO)						0.43 in	10.92 mm
