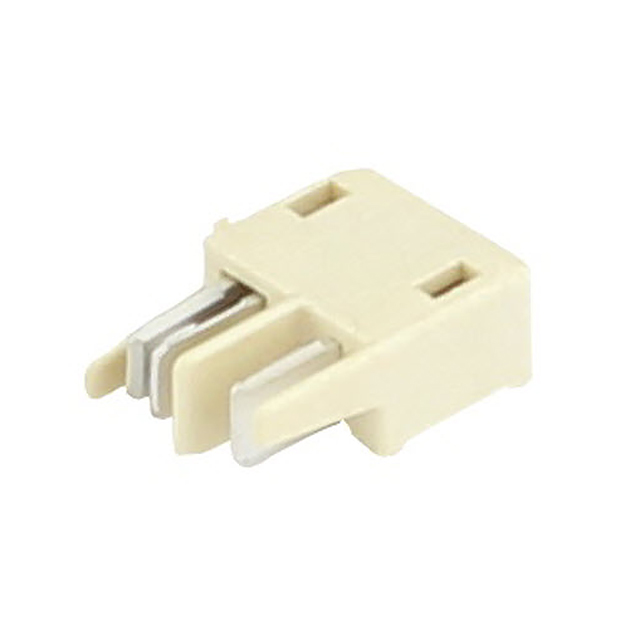

ABTB-400-02-SR1

Active

Assmann WSW Components

LED CONNECTOR

Search across all available documentation for this part.

Active

Assmann WSW Components

LED CONNECTOR

Technical Specifications

Parameters and characteristics for this part

Specification	ABTB-400-02-SR1

Connector Type	Blade and Receptacle, Hermaphroditic
Contact Finish	Tin
Contact Material	Phosphor Bronze
Current Rating (Amps)	6 A
Housing Color	White
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Mounting Type	Board Edge, Right Angle, Surface Mount
Number of Positions	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	4 mm
Pitch [x]	0.157 in
Termination	Solder

Part	Number of Positions	Connector Type	Housing Material	Mounting Type	Contact Material	Contact Finish	Housing Color	Termination	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]
Assmann WSW Components ABTB-400-02-SR1	2	Blade and Receptacle Hermaphroditic	Liquid Crystal Polymer (LCP) Glass Filled	Board Edge Right Angle Surface Mount	Phosphor Bronze	Tin	White	Solder	6 A	-40 °C	105 ░C	4 mm	0.157 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SSL Connector 2 Position Blade and Receptacle, Hermaphroditic Board to Board 0.157" (4.00mm) Solder
