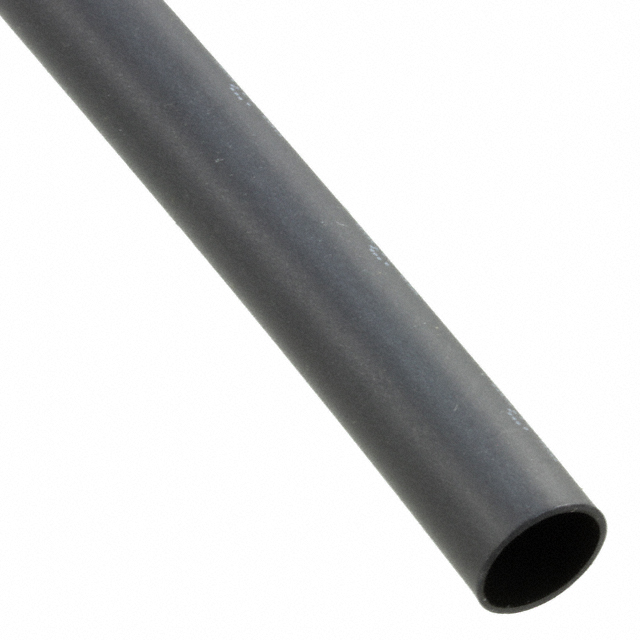

DSPL-NR2-0-STK

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK 0.295" X 4' BLACK

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

HEATSHRINK 0.295" X 4' BLACK

Technical Specifications

Parameters and characteristics for this part

Specification	DSPL-NR2-0-STK

Color	Black
Features	Flame Retardant, Abrasion Resistant
Inner Diameter - Recovered	0.065 in
Inner Diameter - Recovered	1.65 mm
Inner Diameter - Supplied [diameter]	0.295 in
Inner Diameter - Supplied [diameter]	7.49 mm
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Recovered Wall Thickness	0.055 in
Recovered Wall Thickness	1.4 mm
Shrink Temperature	110 °C
Shrinkage Ratio	4 to 1
Type	Tubing, Semi Rigid

Part	Features	Shrink Temperature	Type	Material	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Shrinkage Ratio	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Length	Length	Length	Color	Inner Diameter - Recovered	Inner Diameter - Recovered	Length [x]	Length [x]
TE Connectivity Raychem Cable Protection DSPL-NR1-X-50MM	Abrasion Resistant	110 °C	Tubing Semi Rigid	Polyolefin (PO)	1.27 mm	0.05 in	125 °C	-40 °C	4 to 1	0.045 in	1.14 mm	5.72 mm	0.225 in	0.164 '	50 mm	1.97 "	Clear
TE Connectivity Raychem Cable Protection DSPL-NR4-0-STK
TE Connectivity Raychem Cable Protection DSPL-NR2-0-STK	Abrasion Resistant Flame Retardant	110 °C	Tubing Semi Rigid	Polyolefin (PO)			125 °C	-40 °C	4 to 1	0.055 in	1.4 mm	7.49 mm	0.295 in				Black	0.065 in	1.65 mm	1.22 m	4 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	540	$ 2.34

General part information

Heat Shrink Tubing, Semi Rigid 0.295" (7.49mm) 4 to 1 Black 4.00' (1.22m)

Technical documentation and resources
