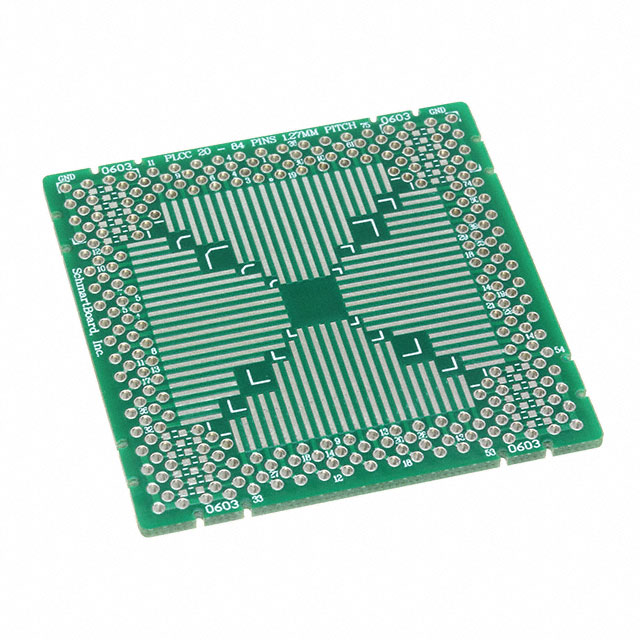

202-0012-01

Active

Schmartboard, Inc.

PLCC, 20 - 84 PINS 0.05" PITCH,

Search across all available documentation for this part.

Active

Schmartboard, Inc.

PLCC, 20 - 84 PINS 0.05" PITCH,

Technical Specifications

Parameters and characteristics for this part

Specification	202-0012-01

Number of Positions	84
Pitch [x]	0.05 in
Pitch [x]	1.27 mm
Proto Board Type	SMD to Plated Through Hole Board
Size / Dimension [x]	50.8 mm
Size / Dimension [x]	2 in
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm

PLCC, 20 - 84 PINS 0.05" PITCH,

Part	Pitch [x]	Pitch [x]	Proto Board Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Number of Positions
Schmartboard, Inc. 202-0012-01	0.05 in	1.27 mm	SMD to Plated Through Hole Board	2 in	50.8 mm	50.8 mm	2 in	84

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 10.00

General part information

PLCC, 20 - 84 PINS 0.05" PITCH,

Technical documentation and resources
