7102-12-1100

Active

Coto Technology

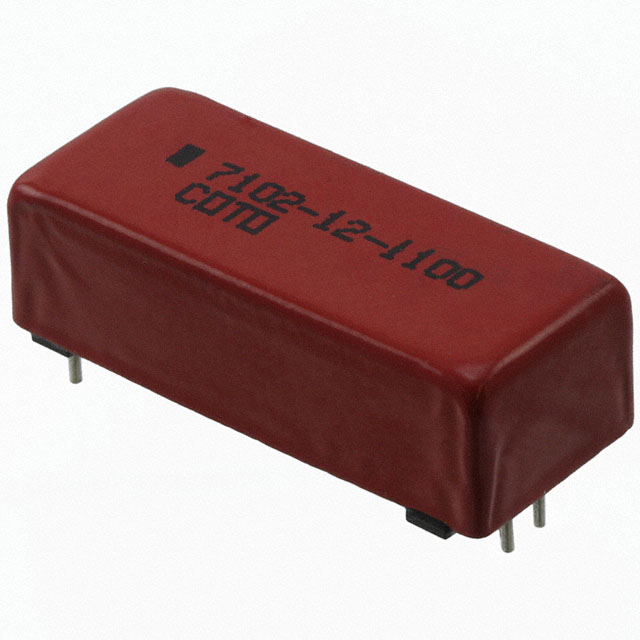

RELAY REED DPST 500MA 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

7102-12-1100

Active

Coto Technology

RELAY REED DPST 500MA 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.58
		10	$ 13.85
		25	$ 13.15
		50	$ 12.46
		100	$ 12.19
Newark	Each	100	$ 16.09
		250	$ 14.63

Description

General part information

7102 Series

RELAY REED DPST 500MA 12V

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	7102-12-1100	7102 Series

Coil Current	12 mA	6.9 - 33.3 mA
Coil Resistance	1 kOhms	1 - 150 kOhms
Coil Type	Non Latching	Non Latching
Coil Voltage	12 VDC	5 - 24 VDC
Contact Form	DPST-NO (2 Form A)	DPST-NO (2 Form A)
Contact Rating (Current)	0.5 A	0.5 A
Features	-	Diode, Electrostatic Shield
Mounting Type	Through Hole	Through Hole
Must Operate Voltage	9 VDC	3.75 - 18 VDC
Must Release Voltage	1 VDC	0.4 - 2 VDC
Operate Time	1 ms	1 ms
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-20 C	-20 C
Release Time	0.1 ms	0.1 ms
Switching Voltage	200 VDC, 200 VAC	200 VDC
Termination Style	PC Pin	PC Pin

7102 Series

RELAY REED DPST 500MA 12V

Part	Release Time	Must Operate Voltage	Coil Type	Contact Rating (Current)	Coil Resistance	Coil Current	Termination Style	Features	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Operate Time	Coil Voltage	Contact Form	Switching Voltage
Coto Technology 7102-12-1001	0.1 ms	9 VDC	Non Latching	0.5 A	1 kOhms	12 mA	PC Pin	Diode	1 VDC	85 °C	-20 C	Through Hole	1 ms	12 VDC	DPST-NO (2 Form A)	200 VDC, 200 VAC
Coto Technology 7102-12-1110	0.1 ms	9 VDC	Non Latching	0.5 A	1 kOhms	12 mA	PC Pin	Electrostatic Shield	1 VDC	85 °C	-20 C	Through Hole	1 ms	12 VDC	DPST-NO (2 Form A)	200 VDC, 200 VAC
Coto Technology 7102-05-1011	0.1 ms	3.75 VDC	Non Latching	0.5 A	150 Ohms	33.3 mA	PC Pin	Diode, Electrostatic Shield	0.4 VDC	85 °C	-20 C	Through Hole	1 ms	5 VDC	DPST-NO (2 Form A)	200 VDC, 200 VAC
Coto Technology 7102-12-1100	0.1 ms	9 VDC	Non Latching	0.5 A	1 kOhms	12 mA	PC Pin		1 VDC	85 °C	-20 C	Through Hole	1 ms	12 VDC	DPST-NO (2 Form A)	200 VDC, 200 VAC
Coto Technology 7102-12-1011	0.1 ms	9 VDC	Non Latching	0.5 A	1 kOhms	12 mA	PC Pin	Diode, Electrostatic Shield	1 VDC	85 °C	-20 C	Through Hole	1 ms	12 VDC	DPST-NO (2 Form A)	200 VDC, 200 VAC
Coto Technology 7102-12-1000	0.1 ms	9 VDC	Non Latching	0.5 A	1 kOhms	12 mA	PC Pin		1 VDC	85 °C	-20 C	Through Hole	1 ms	12 VDC	DPST-NO (2 Form A)	200 VDC, 200 VAC
Coto Technology 7102-05-1000	0.1 ms	3.75 VDC	Non Latching	0.5 A	150 Ohms	33.3 mA	PC Pin		0.4 VDC	85 °C	-20 C	Through Hole	1 ms	5 VDC	DPST-NO (2 Form A)	200 VDC, 200 VAC
Coto Technology 7102-05-1001	0.1 ms	3.75 VDC	Non Latching	0.5 A	150 Ohms	33.3 mA	PC Pin	Diode	0.4 VDC	85 °C	-20 C	Through Hole	1 ms	5 VDC	DPST-NO (2 Form A)	200 VDC, 200 VAC
Coto Technology 7102-05-1010	0.1 ms	3.75 VDC	Non Latching	0.5 A	150 Ohms	33.3 mA	PC Pin	Electrostatic Shield	0.4 VDC	85 °C	-20 C	Through Hole	1 ms	5 VDC	DPST-NO (2 Form A)	200 VDC, 200 VAC
Coto Technology 7102-24-1000	0.1 ms	18 VDC	Non Latching	0.5 A	3.5 kOhms	6.9 mA	PC Pin		2 VDC	85 °C	-20 C	Through Hole	1 ms	24 VDC	DPST-NO (2 Form A)	200 VDC, 200 VAC
