LDS9003-002-T2

Active

IXYS Integrated Circuits Division

IC TEMP/PWM CONTROLLER 16WQFN

Search across all available documentation for this part.

Active

IXYS Integrated Circuits Division

IC TEMP/PWM CONTROLLER 16WQFN

Technical Specifications

Parameters and characteristics for this part

Specification	LDS9003-002-T2

Function	Temp Monitoring System (Sensor)
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Output Alarm	False
Output Fan	False
Output Type	I2C

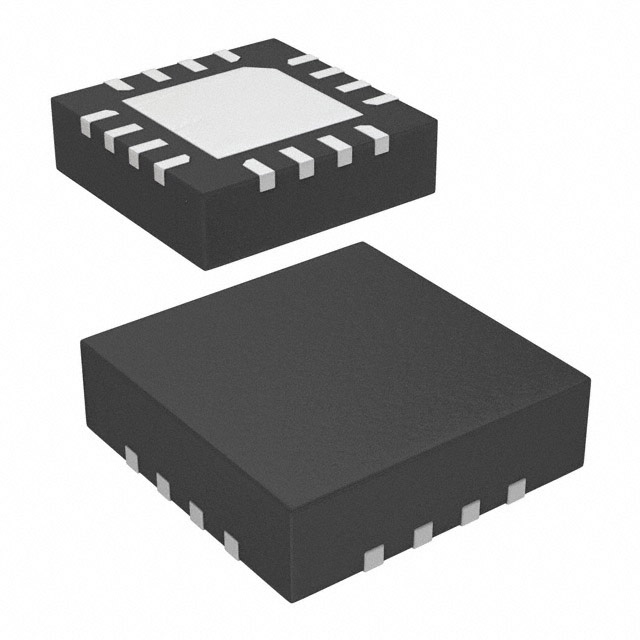

Package / Case	16-WFQFN Exposed Pad
Sensor Type	External
Supplier Device Package	16-TQFN (3x3)
Topology	ADC, Register Bank, Oscillator
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.5 V

IC TEMP/PWM CONTROLLER 16WQFN

Part	Output Type	Topology	Sensor Type	Output Alarm	Function	Output Fan	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]
IXYS Integrated Circuits Division LDS9003-002-T2	I2C	ADC, Oscillator, Register Bank	External		Temp Monitoring System (Sensor)		16-WFQFN Exposed Pad	2.5 V	5.5 V	16-TQFN (3x3)	Surface Mount	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Temp Monitoring System (Sensor) External Sensor I2C Output 16-TQFN (3x3)
