HARTING

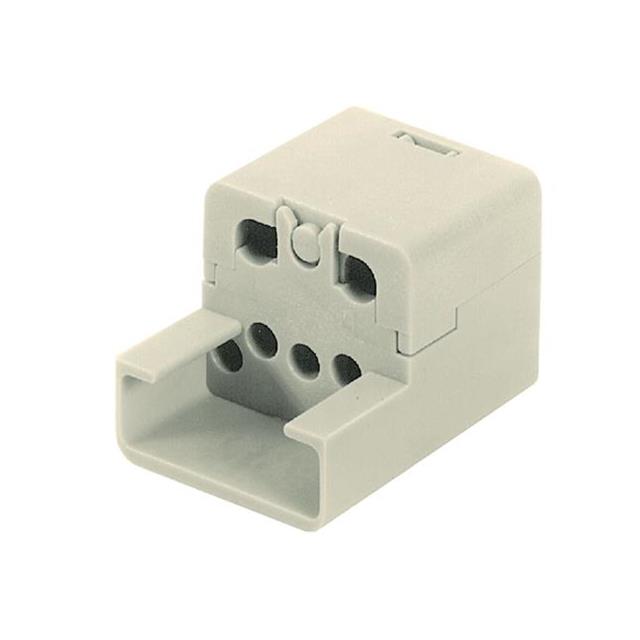

INSERT MALE 4POS+2 FIBER CRIMP

Search across all available documentation for this part.

HARTING

INSERT MALE 4POS+2 FIBER CRIMP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	09120043003	09120043 Series

Color	Gray	Gray
Connector Type	Insert without Contacts	Insert without Contacts, Module without Contacts
Contact Type	-	Han® C, Han® D
Current Rating (Amps)	10 A	10 - 40 A
Gender	Male	Female, Male
Housing Material	Polycarbonate (PC)	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0	UL94 V-0
Number of Positions	4+2 Fiber	4+0+Ground, 4+2 Fiber
Number of Positions	-	4
Operating Temperature [Max]	70 °C	70 - 125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Size	3 A	3 A
Termination Style	Crimp	Crimp
Voltage Rating	50 V	50 - 830 V

HEAVY DUTY INSERT, RCPT, 4POS, 10MM2

Part	Termination Style	Housing Material	Voltage Rating	Size	Color	Current Rating (Amps)	Gender	Material Flammability Rating	Contact Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Number of Positions
HARTING 09120043151	Crimp	Polycarbonate (PC)	830 V	3 A	Gray	40 A	Female	UL94 V-0	Han® C	4+0+Ground	125 °C	-40 °C	Insert without Contacts
HARTING 09120043116	Crimp	Polycarbonate (PC)	50 V	3 A	Gray	10 A	Female	UL94 V-0		4+2 Fiber	70 °C	-40 °C	Insert without Contacts
HARTING 09120043003	Crimp	Polycarbonate (PC)	50 V	3 A	Gray	10 A	Male	UL94 V-0		4+2 Fiber	70 °C	-40 °C	Insert without Contacts
HARTING 09120043113	Crimp	Polycarbonate (PC)	50 V	3 A	Gray	10 A	Female	UL94 V-0		4+2 Fiber	70 °C	-40 °C	Insert without Contacts
HARTING 09120043101	Crimp	Polycarbonate (PC)	50 V	3 A	Gray	10 A	Female	UL94 V-0	Han® D		125 °C	-40 °C	Module without Contacts	4
HARTING 09120043111	Crimp	Polycarbonate (PC)	50 V	3 A	Gray	10 A	Female	UL94 V-0		4+2 Fiber	70 °C	-40 °C	Insert without Contacts
HARTING 09120043051	Crimp	Polycarbonate (PC)	830 V	3 A	Gray	40 A	Male	UL94 V-0	Han® C	4+0+Ground	125 °C	-40 °C	Insert without Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 25.66

General part information

Male Insert without Contacts Gray 4+2 Fiber Position Crimp

Technical documentation and resources
