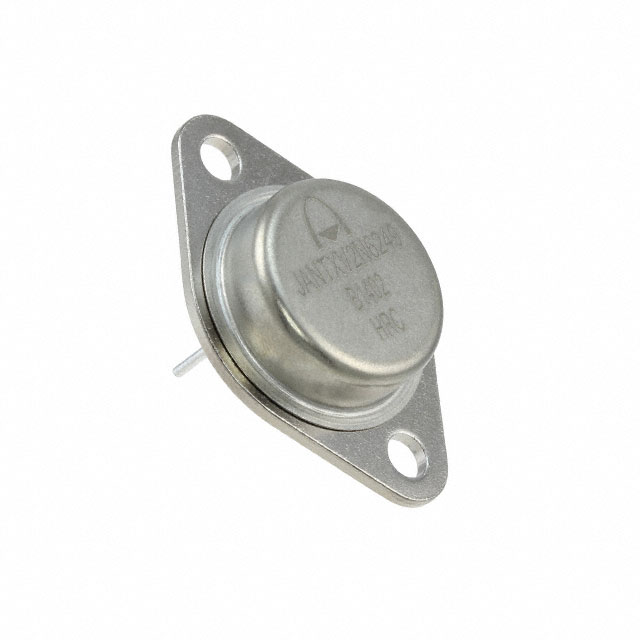

JANTXV2N6249

Active

Microsemi Corporation

TRANS NPN 200V 10A TO3

Search across all available documentation for this part.

Active

Microsemi Corporation

TRANS NPN 200V 10A TO3

Technical Specifications

Parameters and characteristics for this part

Specification	JANTXV2N6249

Current - Collector Cutoff (Max) [Max]	1 mA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	10
Grade	Military
Mounting Type	Through Hole
Package / Case	TO-3
Power - Max [Max]	6 W
Qualification	MIL-PRF-19500/510
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic	1.5 V
Voltage - Collector Emitter Breakdown (Max) [Max]	200 V

Part	Transistor Type	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	Mounting Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Package / Case	Vce Saturation (Max) @ Ib, Ic	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Qualification	Grade
Microsemi Corporation 2N6249T1	NPN	6 W	1 mA	Through Hole	200 V	-65 ░C	200 °C	TO-254AA	TO-254-3 TO-254AA	1.5 V	10
Microsemi Corporation JAN2N6249	NPN	6 W	1 mA	Through Hole	200 V				TO-3	1.5 V	10	MIL-PRF-19500/510	Military
Microsemi Corporation JANTXV2N6249	NPN	6 W	1 mA	Through Hole	200 V				TO-3	1.5 V	10	MIL-PRF-19500/510	Military

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bipolar (BJT) Transistor NPN 200 V 10 A 6 W Through Hole TO-3 (TO-204AA)
