4531-632-SS
ActiveRAF Electronic Hardware

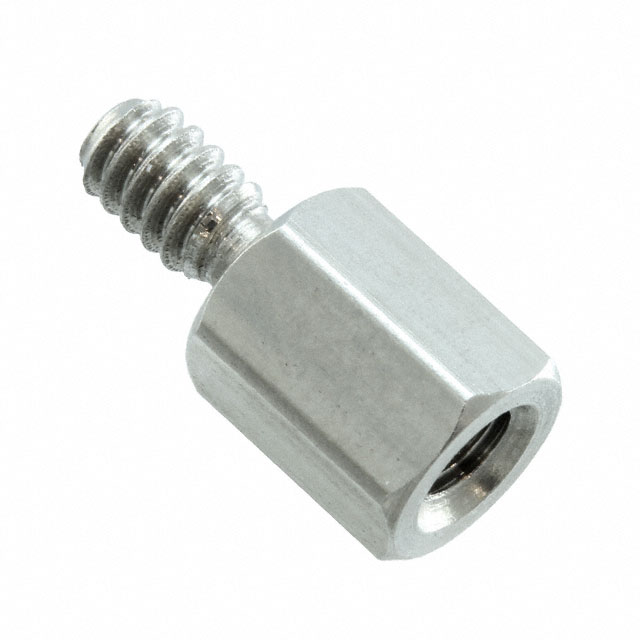

HEX STANDOFF #6-32 SS 5/16"
Deep-Dive with AI
Search across all available documentation for this part.
4531-632-SS
ActiveRAF Electronic Hardware
HEX STANDOFF #6-32 SS 5/16"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 4531-632-SS |
|---|---|
| Between Board Height | 0.3125 in |
| Between Board Height | 7.95 mm |
| Between Board Height | 0.313 " |
| Diameter - Outside | 6.35 mm |
| Diameter - Outside | 0.25 in |
| Diameter - Outside [custom] | 0.25 in |
| Gender | Male, Female |
| Length - Overall | 14.3 mm |
| Length - Overall | 0.5625 " |
| Length - Overall | 0.563 " |
| Material | Stainless Steel |
| Screw, Thread Size | #6-32 |
| Threaded/Unthreaded | Threaded |
| Type | Hex Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.28 | |
| 5 | $ 1.08 | |||
| 10 | $ 1.01 | |||
| 25 | $ 0.93 | |||
| 50 | $ 0.87 | |||
| 100 | $ 0.82 | |||
| 250 | $ 0.76 | |||
| 500 | $ 0.73 | |||
| 1000 | $ 0.69 | |||
Description
General part information
4531-632 Series
Hex Standoff Threaded #6-32 Stainless Steel 0.313" (7.95mm) 5/16"
Documents
Technical documentation and resources
