870-410
ActiveWAGO Corporation
JUMPER (BUSBAR), JUMPER, RAIL MOUNTED TERMINAL BLOCKS, 10 POSITIONS
Deep-Dive with AI
Search across all available documentation for this part.
870-410
ActiveWAGO Corporation
JUMPER (BUSBAR), JUMPER, RAIL MOUNTED TERMINAL BLOCKS, 10 POSITIONS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 870-410 | 870 Series |
|---|---|---|
| Color | Gray | Gray, Green, Yellow |
| Current - IEC | - | 24 A |
| For Use With/Related Products | Terminal Blocks | Terminal Blocks |
| Material - Insulation | - | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | - | 1 - 2 |
| Number of Levels | - | 3 |
| Number of Positions | 10 | 2 - 10 |
| Stripping Length | - | 6 mm |
| Stripping Length | - | 7 mm |
| Style | Flat Pins | Flat Pins |
| Terminal - Width | - | 5 mm |
| Termination Style | - | Push In, Spring |
| Type | Terminal Block, Cross Connection | Terminal Block, Cross Connection, Feed Through, End Plate, Ground, Earth |
| Voltage - IEC | - | 500 V |
| Wire Gauge or Range - AWG | - | 28 AWG |
| Wire Gauge or Range - AWG | - | 12 AWG |
| Wire Gauge or Range - mm² | - | 0.08 mm² |
| Wire Gauge or Range - mm² | - | 2.5 mm² |
870 Series
JUMPER (BUSBAR), JUMPER, RAIL MOUNTED TERMINAL BLOCKS, 2 POSITIONS
| Part | Style | Color | For Use With/Related Products | Number of Positions | Type | Stripping Length [Min] | Stripping Length [Max] | Number of Levels | Termination Style | Current - IEC | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Voltage - IEC | Material - Insulation | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Terminal - Width | Number of Levels [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
WAGO Corporation 870-402 | Flat Pins | Gray | Terminal Blocks | 2 | Terminal Block, Cross Connection | |||||||||||||
WAGO Corporation 870-831 | Gray | 4 | Feed Through | 6 mm | 7 mm | 1 | Push In, Spring | 24 A | 0.08 mm² | 2.5 mm² | 500 V | Polyamide (PA66), Nylon 6/6 | 28 AWG | 12 AWG | 5 mm | |||
WAGO Corporation 870-923 | Gray | Terminal Blocks | End Plate | |||||||||||||||
WAGO Corporation 870-410 | Flat Pins | Gray | Terminal Blocks | 10 | Terminal Block, Cross Connection | |||||||||||||
WAGO Corporation 870-901 | Gray | 2 | Feed Through | 6 mm | 7 mm | 1 | Push In, Spring | 24 A | 0.08 mm² | 2.5 mm² | 500 V | Polyamide (PA66), Nylon 6/6 | 28 AWG | 12 AWG | 5 mm | |||
WAGO Corporation 870-568 | Gray | Terminal Blocks | End Plate | |||||||||||||||
WAGO Corporation 870-943 | Gray | Terminal Blocks | End Plate | |||||||||||||||
WAGO Corporation 870-404 | Flat Pins | Gray | Terminal Blocks | 4 | Terminal Block, Cross Connection | |||||||||||||
WAGO Corporation 870-403 | Flat Pins | Gray | Terminal Blocks | Terminal Block, Cross Connection | ||||||||||||||
WAGO Corporation 870-501 | Gray | 4 | Feed Through | 6 mm | 7 mm | 2 | Push In, Spring | 24 A | 0.08 mm² | 2.5 mm² | 500 V | Polyamide (PA66), Nylon 6/6 | 28 AWG | 12 AWG | 5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
870 Series

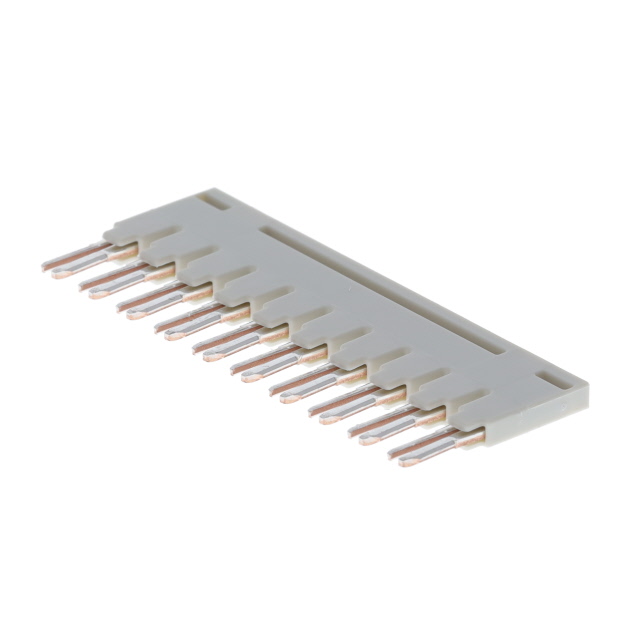

The 870-410 is a 10-position light gray insulated Push-in Jumper Bar suitable for use with through/ground (Earth) conductor and double potential terminal blocks.
