CCL-LX45IT

Active

Lumex Opto/Components Inc.

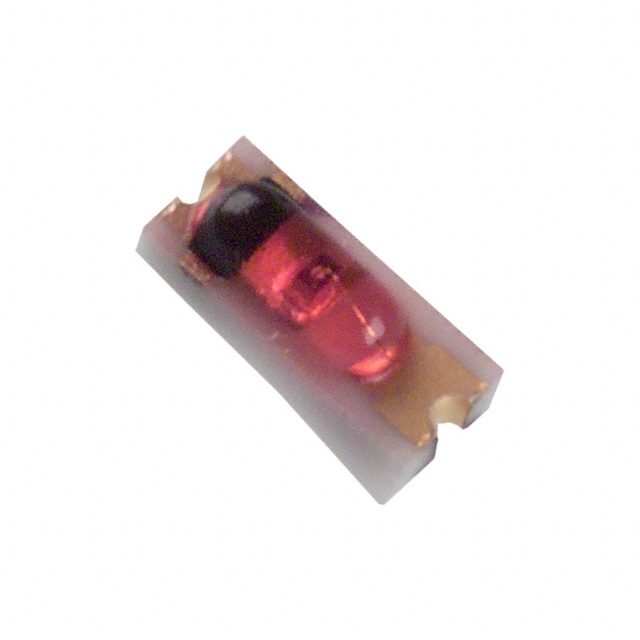

LED RED CLEAR SMD

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED RED CLEAR SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

LED YELLOW CLEAR SMD

Part	Mounting Type	Lens Color	Current - Test	Configuration	Wavelength - Peak	Supplier Device Package	Color	Millicandela Rating	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Package / Case	Height (Max) [Max]	Viewing Angle	Lens Style	Lens Transparency
Lumex Opto/Components Inc. CCL-LX45YT	Surface Mount	Yellow	20 mA	Standard	585 nm	SMD	Yellow	7 mcd	3.2 mm	0.05 "	2.3 V	2-SMD, No Lead	1.2 mm	180 °	Oval with Domed Top	Clear
Lumex Opto/Components Inc. CCL-LX45SRT	Surface Mount	Red	20 mA	Standard	660 nm	SMD	Red	8 mcd	3.2 mm	0.05 "	1.8 V	2-SMD, No Lead	1.2 mm	180 °	Oval with Domed Top	Clear
Lumex Opto/Components Inc. CCL-LX45GT	Surface Mount	Green	20 mA	Standard	565 nm	SMD	Green	7 mcd	3.2 mm	0.05 "	2.2 V	2-SMD, No Lead	1.2 mm	180 °	Oval with Domed Top	Clear
Lumex Opto/Components Inc. CCL-LX45IT	Surface Mount	Red	20 mA	Standard	635 nm	SMD	Red		3.2 mm	0.05 "	2.1 V	2-SMD, No Lead	1.2 mm	180 °	Oval with Domed Top	Clear

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.03
	Digi-Reel®	1	$ 3.03
	Tape & Reel (TR)	12000	$ 1.10

General part information

Red LED Indication - Discrete 2.1V 2-SMD, No Lead
