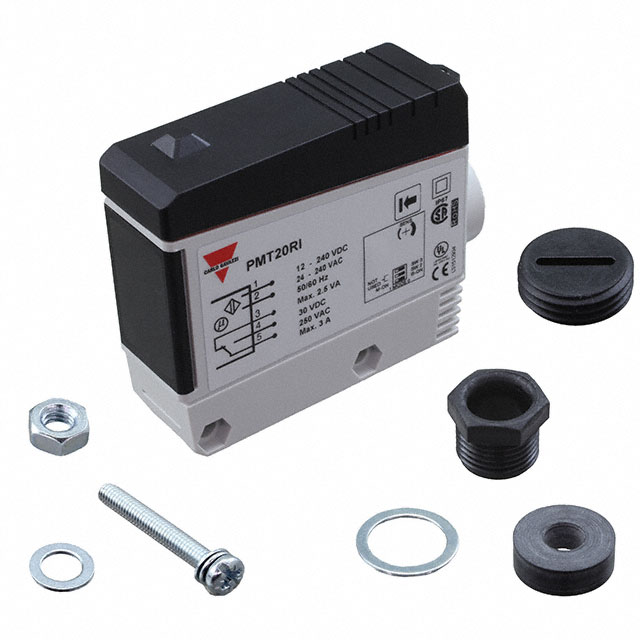

PMT20I

Active

CARLO GAVAZZI

SENSOR THROUGH-BEAM 20M RELAY

Search across all available documentation for this part.

Active

CARLO GAVAZZI

SENSOR THROUGH-BEAM 20M RELAY

Technical Specifications

Parameters and characteristics for this part

Specification	PMT20I

Adjustment Type	Adjustable, 1-Turn Potentiometer
Connection Method	Cable
Ingress Protection	IP67
Light Source	Infrared
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Output Configuration	Relay - Light-ON
Response Time	20 ms
Sensing Distance	787.402 in
Sensing Distance	20 m
Sensing Method	Through-Beam
Voltage - Supply [Max]	264 VDC
Voltage - Supply [Min]	10.8 VDC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Sensing Distance	Sensing Distance	Ingress Protection	Response Time	Light Source	Adjustment Type	Connection Method	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensing Method	Output Configuration
CARLO GAVAZZI PMT20G	55 °C	-25 °C	20 m	787.4 in	IP67	20 ms	Infrared	Adjustable 1-Turn Potentiometer	Cable	264 VDC	10.8 VDC	Through-Beam
CARLO GAVAZZI PMT20I	55 °C	-25 °C	20 m	787.402 in	IP67	20 ms	Infrared	Adjustable 1-Turn Potentiometer	Cable	264 VDC	10.8 VDC	Through-Beam	Relay - Light-ON

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Through-Beam Optical Sensor 787.402" (20m) Relay - Light-ON
