General part information

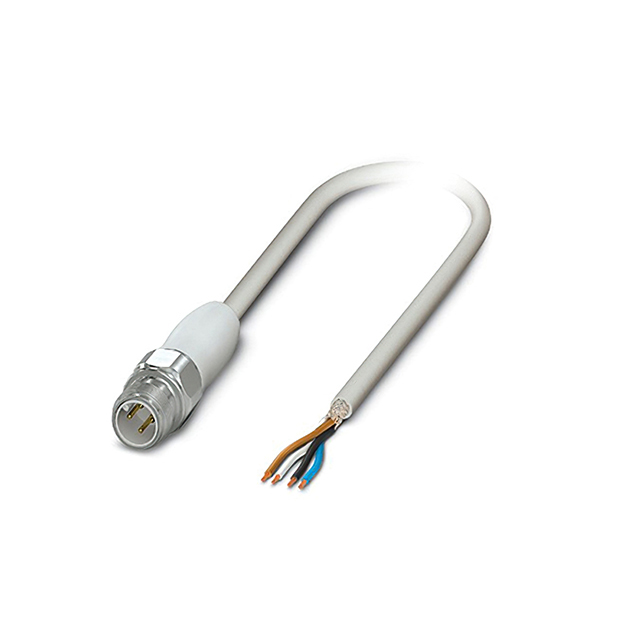

Sensor Cables / Actuator Cables SAC-5P-MS/20,0-923/ FS CAN SCO
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 1403984 | SAC Series |
|---|---|---|
| 1st Connector Gender | Male Pins | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 4 | 3 - 4 |
| 1st Connector Number of Positions Loaded | All | All |
| 1st Connector Orientation | A | A |
| 1st Connector Shell Size - Insert | M12 | M12 |
| 1st Connector Type | Plug | Plug |
| 2nd Connector Type | Wire Leads | Wire Leads |
| Accessory Type | - | Terminator, Fuse Clip |
| Assembly Configuration | Standard | Standard |
| Cable Length | - | 300 mm |
| Cable Material | Polypropylene (PP), Ethylene Propylene Diene Monomer (EPDM) | Polypropylene (PP), Ethylene Propylene Diene Monomer (EPDM), Polyurethane (PUR) |
| Cable Type | Round | Round |
| Color | Gray | Black, Gray |
| Connector - Cable | - | M12 |
| Connector - Sensor | - | Rectangular |
| Connector Style | - | Standard |
| Convert From (Adapter End) | - | Female Sockets |
| Convert To (Adapter End) | - | Male Pins |
| Current Rating (Amps) | - | 4 A |
| Features | - | Waterproof, Dust Tight |
| For Use With/Related Products | - | Circular Connectors, M12 Sensor/Actuator Connector, Plug Side |
| Housing Color | - | Green |
| Housing Material | - | Thermoplastic Polyurethane (TPU) |
| Ingress Protection | IP68, IP69K, IP65, IP67 | IP67, IP65, IP68, IP69K |
| Length | - | 98.4 ft |
| Length | - | 30 m |
| Material | - | Polyurethane, Polyamide (PA), Nylon |
| Material Flammability Rating | - | UL94 HB |
| Mounting Type | - | Free Hanging (In-Line) |
| Number of Positions (Convert From) | - | 3 |
| Operating Temperature | - | 90 °C |
| Operating Temperature | - | -25 °C |
| Orientation (Convert From) | - | A |
| Orientation (Convert To) | - | A |
| Shell Size - Insert | - | M12 |
| Shell Size - Insert (Convert From) | - | M12 |
| Shell Size - Insert (Convert To) | - | M8 |
| Shielding | Shielded | Unshielded, Shielded |
| Termination | - | Connector |
| Usage | Industrial Environments | Industrial Environments |
| Voltage Rating | - | 60 VDC |
Sensor Cables / Actuator Cables SAC-5P-MS/20,0-923/ FS CAN SCO
| Part | Cable Length | Termination | Connector - Cable | Connector - Sensor | Connector Style | Voltage Rating | Ingress Protection | Number of Positions (Convert From) | Convert To (Adapter End) | Operating Temperature [Max] | Operating Temperature [Min] | Housing Color | Housing Material | Mounting Type | Orientation (Convert To) | Material Flammability Rating | Convert From (Adapter End) | Shell Size - Insert (Convert From) | Orientation (Convert From) | Current Rating (Amps) | Shielding | Shell Size - Insert (Convert To) [custom] | Material | Features | For Use With/Related Products | Shell Size - Insert | Accessory Type | Color | Cable Type | 1st Connector Type | 1st Connector Orientation | 1st Connector Shell Size - Insert | Cable Material | 1st Connector Gender | 1st Connector Number of Positions Loaded | 2nd Connector Type | Assembly Configuration | 1st Connector Mounting Type | 1st Connector Number of Positions | Usage | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1400768 | 300 mm | Connector | M12 | Rectangular | ||||||||||||||||||||||||||||||||||||||
Phoenix Contact 1519749 | Standard | 60 VDC | IP65, IP67 | 3 | Male Pins | 90 °C | -25 °C | Green | Thermoplastic Polyurethane (TPU) | Free Hanging (In-Line) | A | UL94 HB | Female Sockets | M12 | A | 4 A | Unshielded | M8 | ||||||||||||||||||||||||
Phoenix Contact 1507816 | Polyurethane | Dust Tight, Waterproof | Circular Connectors | M12 | Terminator | Black | ||||||||||||||||||||||||||||||||||||
Phoenix Contact 1403984 | IP65, IP67, IP68, IP69K | Shielded | Gray | Round | Plug | A | M12 | Ethylene Propylene Diene Monomer (EPDM), Polypropylene (PP) | Male Pins | All | Wire Leads | Standard | Free Hanging (In-Line) | 4 | Industrial Environments | |||||||||||||||||||||||||||
Phoenix Contact 1439159 | Polyurethane (PUR) | 3 | ||||||||||||||||||||||||||||||||||||||||
Phoenix Contact 1512885 | Unshielded | Black | Round | M12 | Polyurethane (PUR) | All | 4 | 98.4 ft | 30 m | |||||||||||||||||||||||||||||||||
Phoenix Contact 1558988 | Polyamide (PA), Nylon | M12 Sensor/Actuator Connector, Plug Side | M12 | Fuse Clip | Black |
