EN3C6MX
ActiveSwitchcraft Inc.

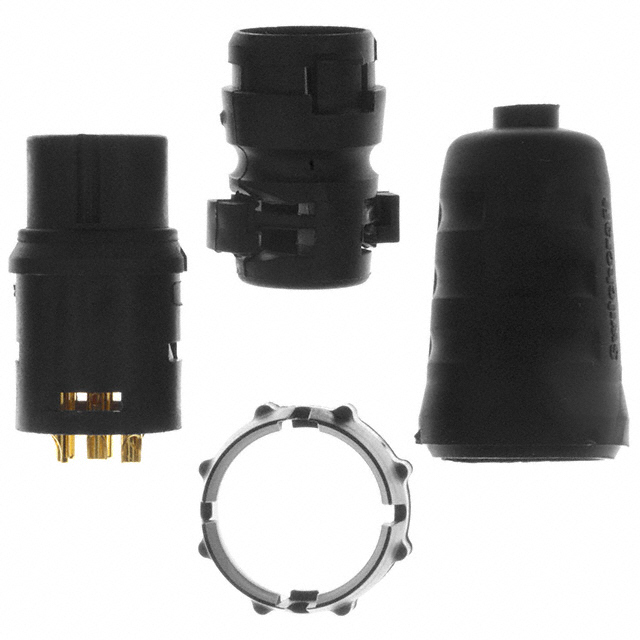

CONN PLUG MALE 6P GOLD SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN3C6MX
ActiveSwitchcraft Inc.
CONN PLUG MALE 6P GOLD SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN3C6MX | EN3C6M Series |
|---|---|---|
| Applications | Instrumentation, Medical, General Purpose, Marine | Instrumentation, Medical, General Purpose, Marine |
| Backshell Material, Plating | Thermoplastic | Thermoplastic |
| Cable Opening [diameter] | 6.73 mm, 4.06 mm | 4.06 - 6.73 mm |
| Cable Opening [diameter] | 0.265 in, 0.16 in | 0.16 - 0.265 in |
| Color | Black | Black |
| Connector Type | Plug, Male Pins | Plug, Male Pins |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 7.5 A | 7.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Features | Cable Clamp, Coupling Nut, Backshell | Cable Clamp, Coupling Nut, Backshell |
| Ingress Protection | IP66/IP68 | IP66/IP68 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 6 | 6 |
| Operating Temperature [Max] | 65 °C | 65 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | - | Crimp |
| Voltage Rating | 250 VAC | 250 VAC |
EN3C6M Series
CONN PLUG MALE 6POS SOLDER CUP
| Part | Insert Material | Contact Material | Shielding | Cable Opening [diameter] | Cable Opening [diameter] | Primary Material | Color | Backshell Material, Plating | Mounting Type | Material Flammability Rating | Features | Voltage Rating | Contact Finish - Mating | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Current Rating (Amps) | Connector Type | Applications | Fastening Type | Orientation | Ingress Protection | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN3C6MKX | Elastomer | Copper Alloy | Unshielded | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in | Plastic | Black | Thermoplastic | Free Hanging (In-Line) | UL94 V-0 | Backshell, Cable Clamp, Coupling Nut | 250 VAC | Gold | 6 | 65 °C | -40 °C | 7.5 A | Male Pins, Plug | General Purpose, Instrumentation, Marine, Medical | Bayonet Lock | Keyed | IP66/IP68 | |
Switchcraft Inc. EN3C6MCX | Elastomer | Copper Alloy | Unshielded | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in | Plastic | Black | Thermoplastic | Free Hanging (In-Line) | UL94 V-0 | Backshell, Cable Clamp, Coupling Nut | 250 VAC | Gold | 6 | 65 °C | -40 °C | 7.5 A | Male Pins, Plug | General Purpose, Instrumentation, Marine, Medical | Bayonet Lock | Keyed | IP66/IP68 | Crimp |
Switchcraft Inc. EN3C6MCKX | Elastomer | Copper Alloy | Unshielded | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in | Plastic | Black | Thermoplastic | Free Hanging (In-Line) | UL94 V-0 | Backshell, Cable Clamp, Coupling Nut | 250 VAC | Gold | 6 | 65 °C | -40 °C | 7.5 A | Male Pins, Plug | General Purpose, Instrumentation, Marine, Medical | Bayonet Lock | Keyed | IP66/IP68 | Crimp |
Switchcraft Inc. EN3C6MX | Elastomer | Copper Alloy | Unshielded | 4.06 mm, 6.73 mm | 0.16 in, 0.265 in | Plastic | Black | Thermoplastic | Free Hanging (In-Line) | UL94 V-0 | Backshell, Cable Clamp, Coupling Nut | 250 VAC | Gold | 6 | 65 °C | -40 °C | 7.5 A | Male Pins, Plug | General Purpose, Instrumentation, Marine, Medical | Bayonet Lock | Keyed | IP66/IP68 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.53 | |
| 10 | $ 10.22 | |||
| 25 | $ 9.83 | |||
| 50 | $ 9.43 | |||
| 100 | $ 8.91 | |||
| 250 | $ 8.12 | |||
| 500 | $ 8.09 | |||
Description
General part information
EN3C6M Series
6 Position Circular Connector Plug, Male Pins Solder Cup
