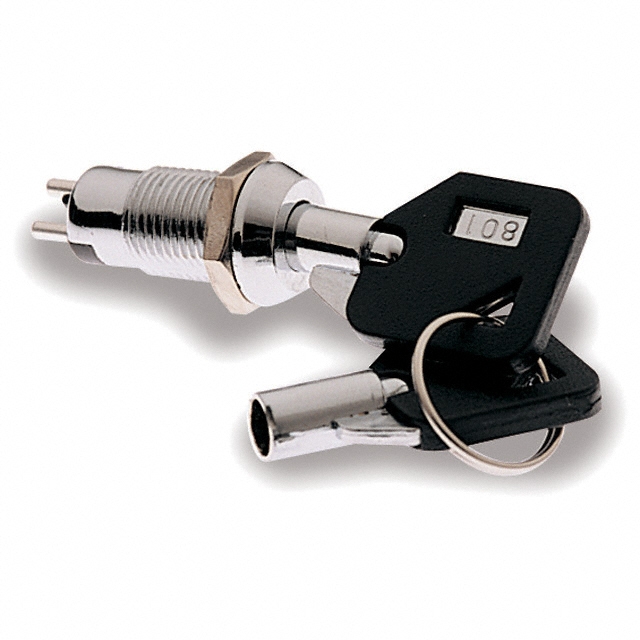

KO133E845

Active

E-Switch

SWITCH KEYLOCK 2POS SPST 1A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH KEYLOCK 2POS SPST 1A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	KO133E845

Actuator Type	Tubular Key
Angle of Throw	90 °
Circuit	SPST-NO
Contact Finish	Silver
Contact Material	Copper Alloy
Contact Timing	Not Specified
Current Rating (Amps)	1 A
Depth Behind Flange	32 mm
Key Removable Positions	1 only
Number of Positions	2
Panel Cutout Dimensions [diameter]	12 mm
Switch Function	Off-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Contact Finish	Switch Function	Contact Timing	Circuit	Voltage Rating - AC	Contact Material	Panel Cutout Dimensions [diameter]	Depth Behind Flange	Termination Style	Key Removable Positions	Current Rating (Amps)	Actuator Type	Number of Positions	Angle of Throw
E-Switch KO133E845	Silver	Off-Mom	Not Specified	SPST-NO	125 V	Copper Alloy	12 mm	32 mm	Solder Lug	1 only	1 A	Tubular Key	2	90 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	300	$ 4.89

General part information

Keylock Switch 2 Position SPST-NO 1A (AC) 125 VAC DC Panel Mount
