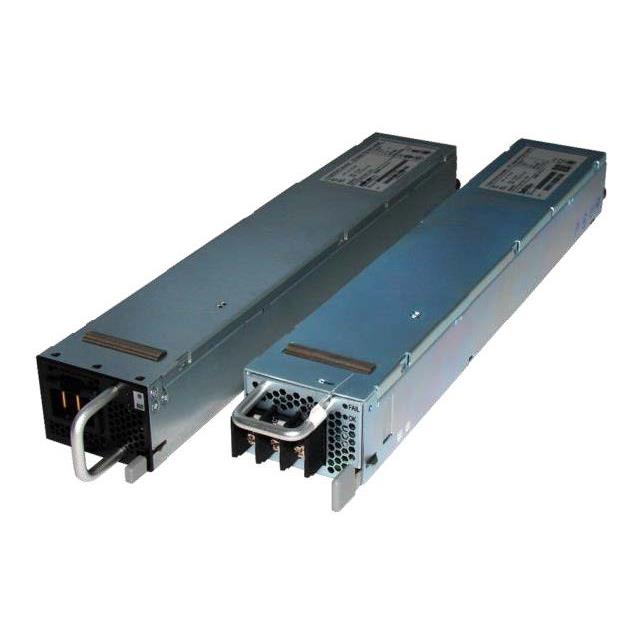

PFE1100-12-054ND

Active

Bel Power Solutions

DC/DC POWER SUPPLY SINGLE-OUT 12V 90A 1080W

Search across all available documentation for this part.

Active

Bel Power Solutions

DC/DC POWER SUPPLY SINGLE-OUT 12V 90A 1080W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Front End DC DC Converter 1 Output 12V 90A 72V Input

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	PFE1100-12-054ND	PFE1100 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE, CB, CQC, cCSAus, NEMKO, KC, CCC	CE, CB, CQC, cCSAus, NEMKO, KC, CCC
Current - Output (Max) [Max]	90 A	90 A
Current - Output 1	-	90 A
Current - Output 2	-	3.3 A
Efficiency	-	94 %
Features	-	Remote On/Off, Standby Output, I2C Interface, PMBus™, Adjustable Output, Remote Sense, Load Sharing, PFC, Hot Swappable
Mounting Type	Rack Mount	Rack Mount
Number of Outputs	1	1 - 2
Operating Temperature [Max]	45 °C	45 - 70 °C
Operating Temperature [Min]	0 °C	0 °C
Power (Watts)	1100 W	1100 W
Size / Dimension [x]	12.66 in	12.66 - 14.28 in
Size / Dimension [x]	321.5 mm	321.5 - 362.7 mm
Size / Dimension [y]	2.15 "	2.15 "
Size / Dimension [y]	54.5 mm	54.5 mm
Size / Dimension [z]	1.57 "	1.57 "
Size / Dimension [z]	40 mm	40 mm
Standard Number	-	62368-1
Type	Front End	Front End
Voltage - Input	-	90 VAC
Voltage - Input	-	264 VAC
Voltage - Input (Max) [Max]	72 V	72 V
Voltage - Input (Min) [Min]	40 V	40 V
Voltage - Output 1	12 V	12 V
Voltage - Output 2	-	5 V

DC/DC POWER SUPPLY SINGLE-OUT 12V 90A 1080W

Part	Approval Agency	Voltage - Input (Max) [Max]	Mounting Type	Voltage - Output 1	Number of Outputs	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Type	Applications	Power (Watts)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Current - Output 2	Features	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Standard Number	Current - Output 1	Voltage - Output 2
Bel Power Solutions PFE1100-12-054ND	CB, CCC, cCSAus, CE, CQC, KC, NEMKO	72 V	Rack Mount	12 V	1	90 A	40 V	Front End	ITE (Commercial)	1100 W	45 °C	0 °C	12.66 in	2.15 "	1.57 "	54.5 mm	40 mm	321.5 mm
Bel Power Solutions PFE1100-12-054RA	CE, NEMKO		Rack Mount	12 V	2			Front End	ITE (Commercial)	1100 W	70 °C	0 °C	14.28 "	2.15 "	1.57 "	54.5 mm	40 mm	362.7 mm	3.3 A	Adjustable Output, Hot Swappable, I2C Interface, Load Sharing, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output	94 %	90 VAC	264 VAC	62368-1	90 A	5 V
