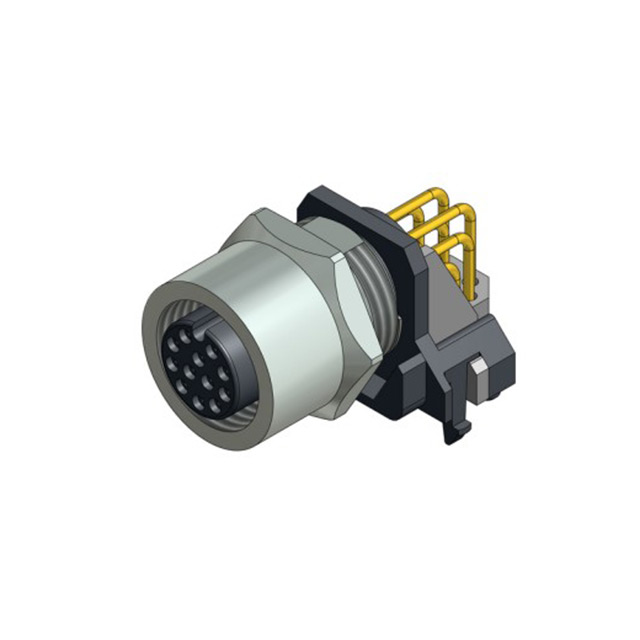

43-02640

Active

Amphenol CONEC

CONN PLUG FMALE 12POS GOLD SLDR

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN PLUG FMALE 12POS GOLD SLDR

Technical Specifications

Parameters and characteristics for this part

Specification	43-02640

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating (Amps)	1.5 A
Features	Board Guide, Board Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	12
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Zinc
Shell Size - Insert	M12-12
Shielding	Unshielded
Termination	Solder
Voltage Rating	30 VDC

Part	Number of Positions	Shell Size - Insert	Insert Material	Voltage Rating	Shell Finish	Features	Shielding	Orientation	Shell Material	Ingress Protection	Mounting Type	Connector Type	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish - Mating	Current Rating (Amps)	Mounting Feature	Material Flammability Rating	Color	Termination
Amphenol CONEC 43-02640	12	M12-12	Nylon Polyamide (PA)	30 VDC	Nickel	Board Guide Board Lock	Unshielded	A	Copper Zinc	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	Female Sockets Plug	Metal	-30 ░C	85 °C	Copper Zinc	Gold	1.5 A	Bulkhead	UL94 V-0	Silver	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	30	$ 33.13

General part information

12 Position Circular Connector Plug, Female Sockets Solder
