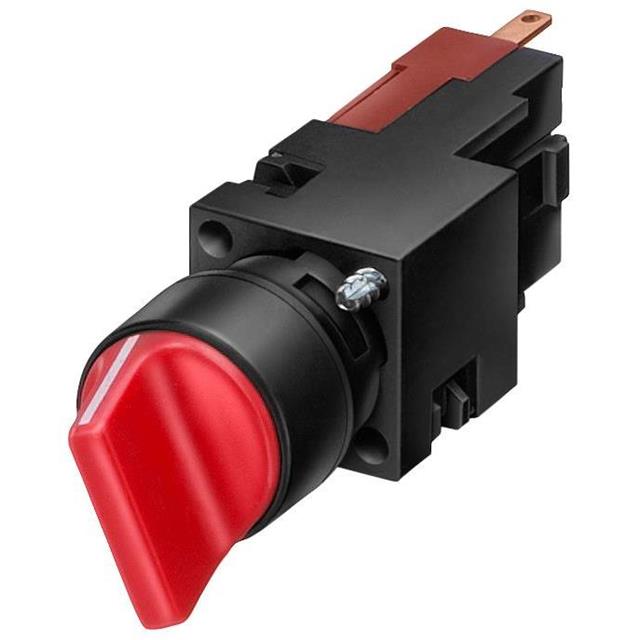

3SB22102EE01

Active

Siemens

SWITCH SELECT 3POS DPST 10A 110V

Search across all available documentation for this part.

Active

Siemens

SWITCH SELECT 3POS DPST 10A 110V

Technical Specifications

Parameters and characteristics for this part

Specification	3SB22102EE01

Approval Agency	EAC, CCC, UL, CSA, CE
Circuit	DPST-NO
Depth Behind Flange [z]	50 mm
Illumination	Non-Illuminated
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	300000 Cycles
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	Off-Mom
Termination Style	Quick Connect
Type	Standard
Voltage Rating - AC	110 V
Voltage Rating - DC	24 V

Part	Panel Cutout Dimensions [diameter]	Mechanical Life	Type	Voltage Rating - AC	Depth Behind Flange [z]	Ingress Protection	Approval Agency	Illumination	Voltage Rating - DC	Circuit	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Current Rating (Amps)
Siemens 3SB22102EC01	16 mm	300000 Cycles	Standard	110 V	50 mm	IP65 - Dust Tight Water Resistant	CCC CE CSA EAC UL	Non-Illuminated	24 V	DPST-NO	Off-Mom	70 °C	-25 °C	Quick Connect
Siemens 3SB22102DB01	16 mm	300000 Cycles	Standard	110 V	50 mm	IP65 - Dust Tight Water Resistant	CCC CE CSA EAC UL	Non-Illuminated	24 V	DPST-NO	Off-On	70 °C	-25 °C	Quick Connect
Siemens 3SB22102DE01	16 mm	300000 Cycles	Standard	110 V	50 mm	IP65 - Dust Tight Water Resistant	CCC CE CSA EAC UL	Non-Illuminated	24 V	DPST-NO	Off-On	70 °C	-25 °C	Quick Connect
Siemens 3SB22102EB01	16 mm	300000 Cycles	Standard	110 V	50 mm	IP65 - Dust Tight Water Resistant	CCC CE CSA EAC UL	Non-Illuminated	24 V	DPST-NO	Off-Mom	70 °C	-25 °C	Quick Connect
Siemens 3SB22102DG01	16 mm	300000 Cycles	Standard	110 V	50 mm	IP65 - Dust Tight Water Resistant	CCC CE CSA EAC UL	Non-Illuminated	24 V	DPST-NO	Off-On	70 °C	-25 °C	Quick Connect
Siemens 3SB22104PA01	16 mm	300000 Cycles	Standard	110 V	50 mm	IP65 - Dust Tight Water Resistant	CCC CE CSA EAC UL	Non-Illuminated	24 V	DPST-NO	Off-On	70 °C	-25 °C	Quick Connect	10 A
Siemens 3SB22102EE01	16 mm	300000 Cycles	Standard	110 V	50 mm	IP65 - Dust Tight Water Resistant	CCC CE CSA EAC UL	Non-Illuminated	24 V	DPST-NO	Off-Mom	70 °C	-25 °C	Quick Connect

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 98.95

General part information

Selector Switch 3 Position DPST-NO 10A (AC), 6A (DC) 110 V Panel Mount
