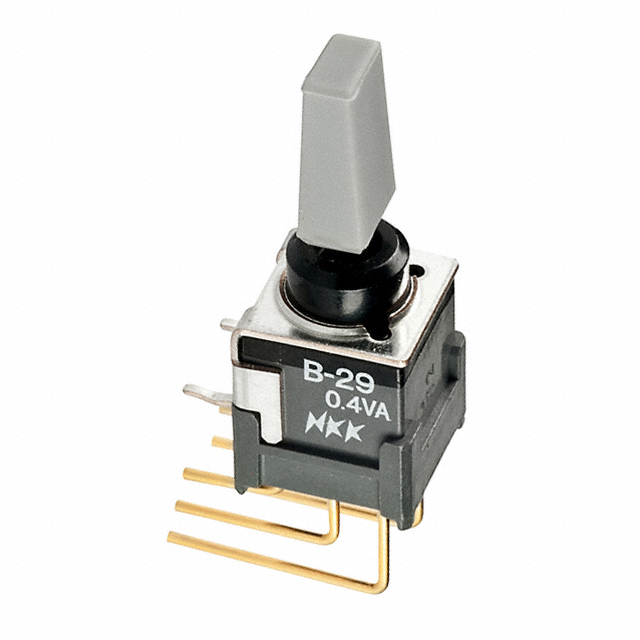

B29KV-AH

Active

NKK Switches

SWITCH TOGGLE DPDT 0.4VA 28V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH TOGGLE DPDT 0.4VA 28V

Technical Specifications

Parameters and characteristics for this part

Specification	B29KV-AH

Actuator Length [x]	9.4 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Type	Snap On Paddle
Bushing Thread	Unthreaded
Circuit	DPDT
Current Rating (Amps)	0.4 VA
Electrical Life	50000 Cycles
Features	Gray Actuator
Illumination	Non-Illuminated
Mounting Type	Through Hole, Vertical, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-Off-Mom
Termination Style	PC Pin
Voltage Rating - AC	28 V
Voltage Rating - DC	28 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Mounting Type	Bushing Thread	Circuit	Termination Style	Actuator Length [x]	Features	Voltage Rating - AC	Current Rating (Amps)	Switch Function	Actuator Type	Actuator Material	Illumination	Electrical Life
NKK Switches B29KV-AH	-30 ░C	85 °C	28 V	Right Angle Through Hole Vertical	Unthreaded	DPDT	PC Pin	9.4 mm	Gray Actuator	28 V	0.4 VA	On-Off-Mom	Snap On Paddle	Nylon Polyamide (PA)	Non-Illuminated	50000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Toggle Switch DPDT Through Hole, Right Angle, Vertical
