Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | STEVAL-MKIT01V1 | STEVAL-MKIT01V1 Series |
|---|---|---|
| - | - | |
| Contents | Board(s) | Board(s) |
| Function | Pressure, Accelerometer, Gyroscope, Magnetometer | Pressure, Accelerometer, Gyroscope, Magnetometer |
| Interconnect System | DIL24 | DIL24 |
| Platform | Professional MEMS Tool | Professional MEMS Tool |
| Suggested Programming Environment | Unico | Unico |
| Type | Sensor | Sensor |
| Utilized IC / Part | LIS2MDL, LIS2DW12, LPS22HB, LSM6DSL | LIS2MDL, LIS2DW12, LPS22HB, LSM6DSL |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.59 | |
STEVAL-MKIT01V1 Series
MEMS sensor sample kit
| Part | Utilized IC / Part | Type | Interconnect System | Contents | Function | Suggested Programming Environment | Platform |
|---|---|---|---|---|---|---|---|
STMicroelectronics STEVAL-MKIT01V1 | LIS2DW12, LIS2MDL, LPS22HB, LSM6DSL | Sensor | DIL24 | Board(s) | Accelerometer, Gyroscope, Magnetometer, Pressure | Unico | Professional MEMS Tool |
STMicroelectronics STEVAL-MKIT01V1 |
Description
General part information
STEVAL-MKIT01V1 Series

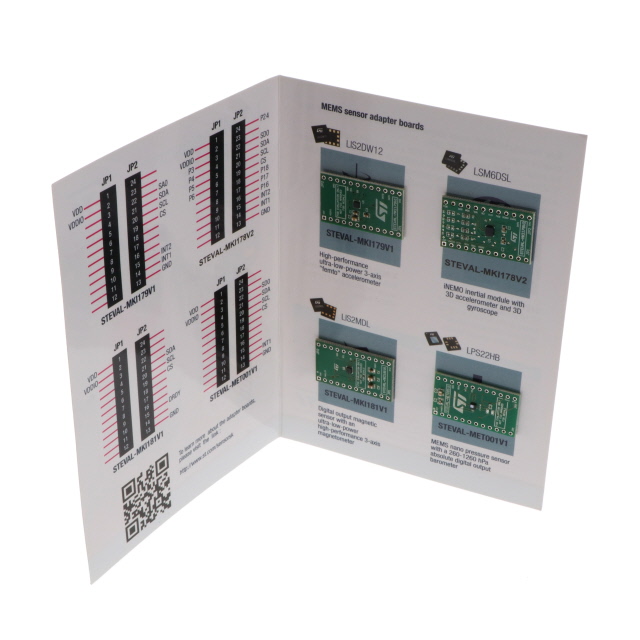

The STEVAL-MKIT01V1 is a MEMS sensor sample kit containing four sensor adapter boards that can be evaluated in standalone mode by simply connecting an I²C cable.
The STEVAL-MKI109V3 evaluation board, based on the STM32F401VET6 microcontroller, can be used for a more in-depth evaluation, as a bridge between the sensor adapter boards and a PC running STMicroelectronics graphical user interface (GUI) or an X-NUCLEO expansion board.
